AWI-CM3 v3.2

Changes to previous version

• Updated FESOM2 from version 2.0 to 2.5 FESOM2 release AWI-CM_v3.2.

Patch releases covered by this evaluation

v3.2.1 and v3.2.2 install as their own targets and carry different component versions to v3.2, but they produce bit identical results, so the figures further down describe them too.

Note that the L1PCTCO2 fix released as v3.1.3 is in neither v3.2 nor v3.2.1.

Model overview

Oasis fields

Spinup run

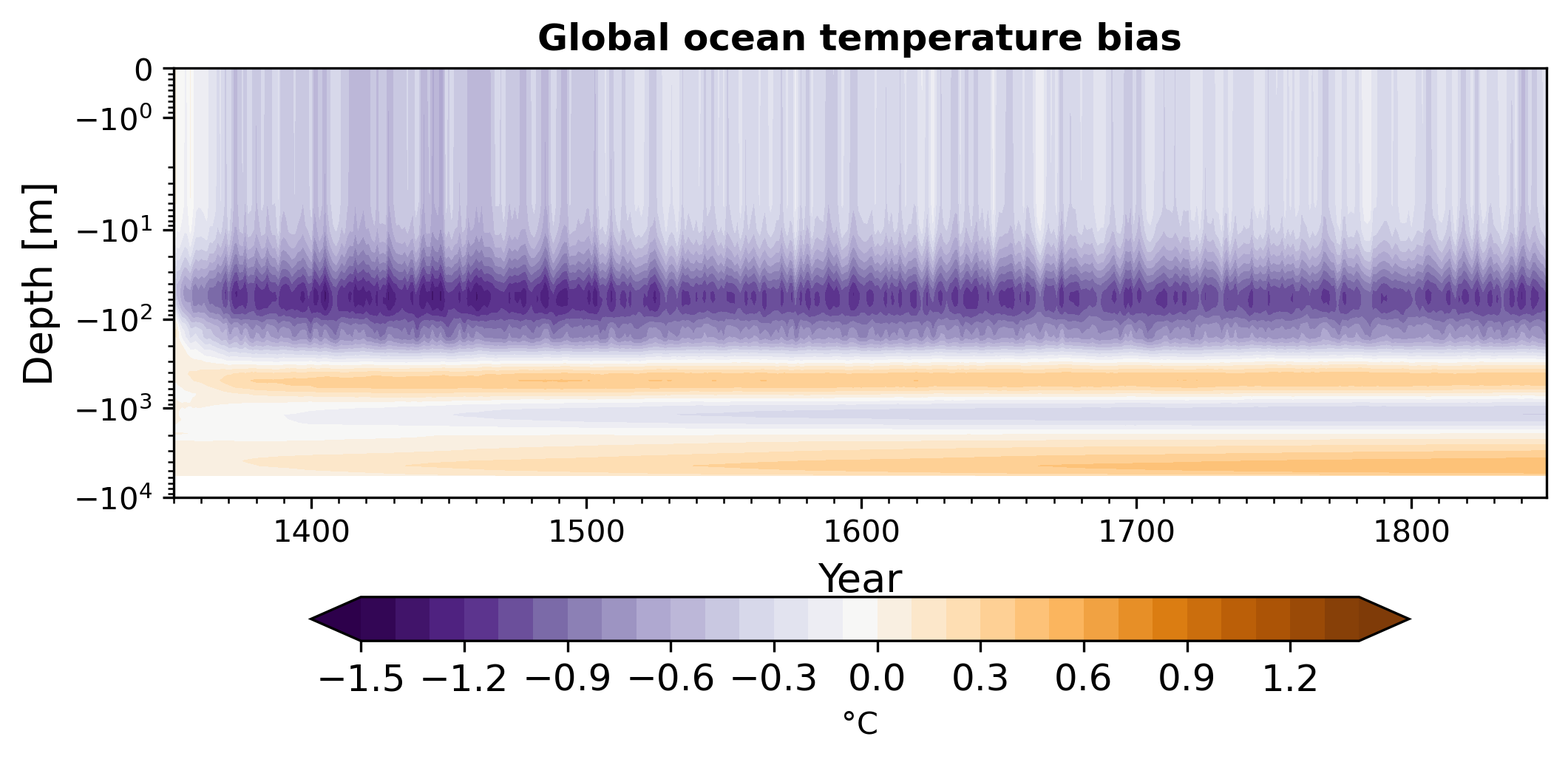

Spinup radiation budget Spinup temperature hovmöller

Historic run

Model performance indices Sea ice thickness Sea ice extent Weddell sea Coupling fluxes Zonal means Ocean temperature Ocean salinity ENSO AMOC Global warming

AWI-CM3.2 release diagnostics

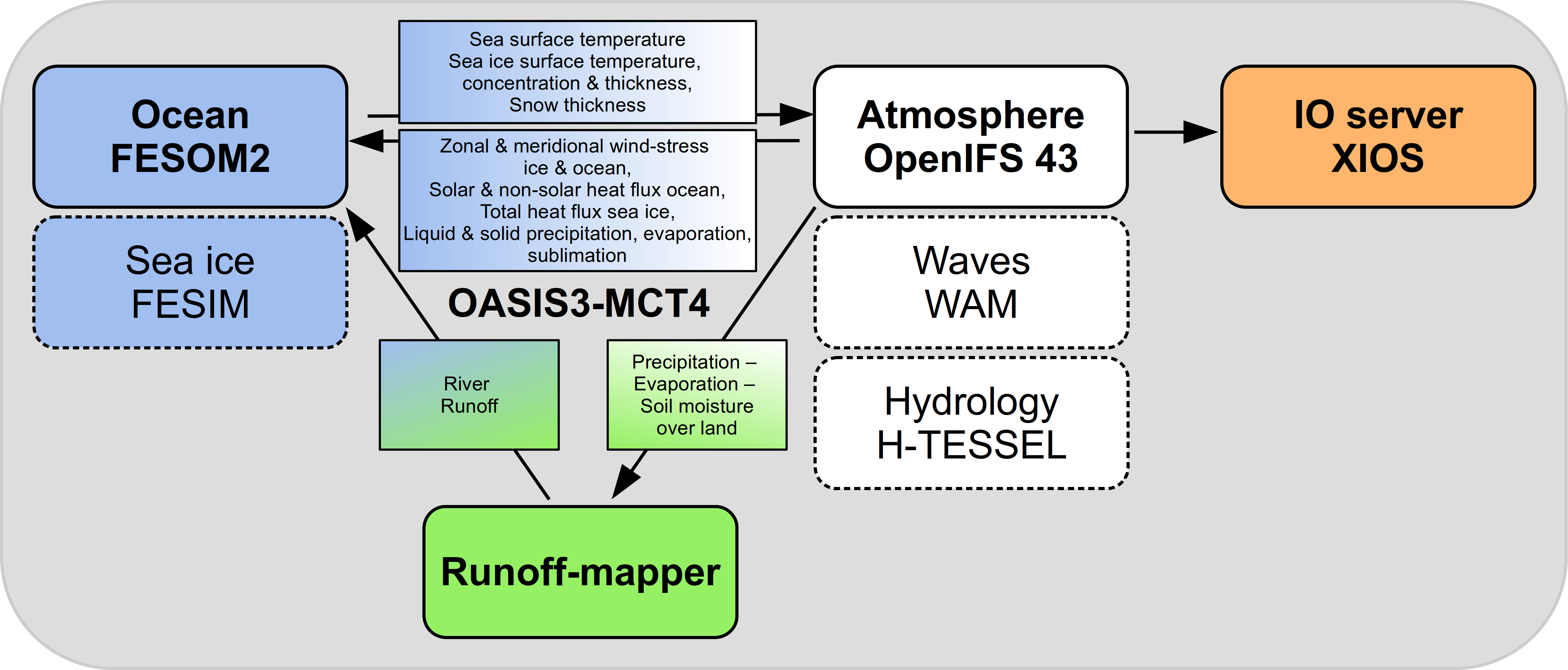

Model components and coupling fields

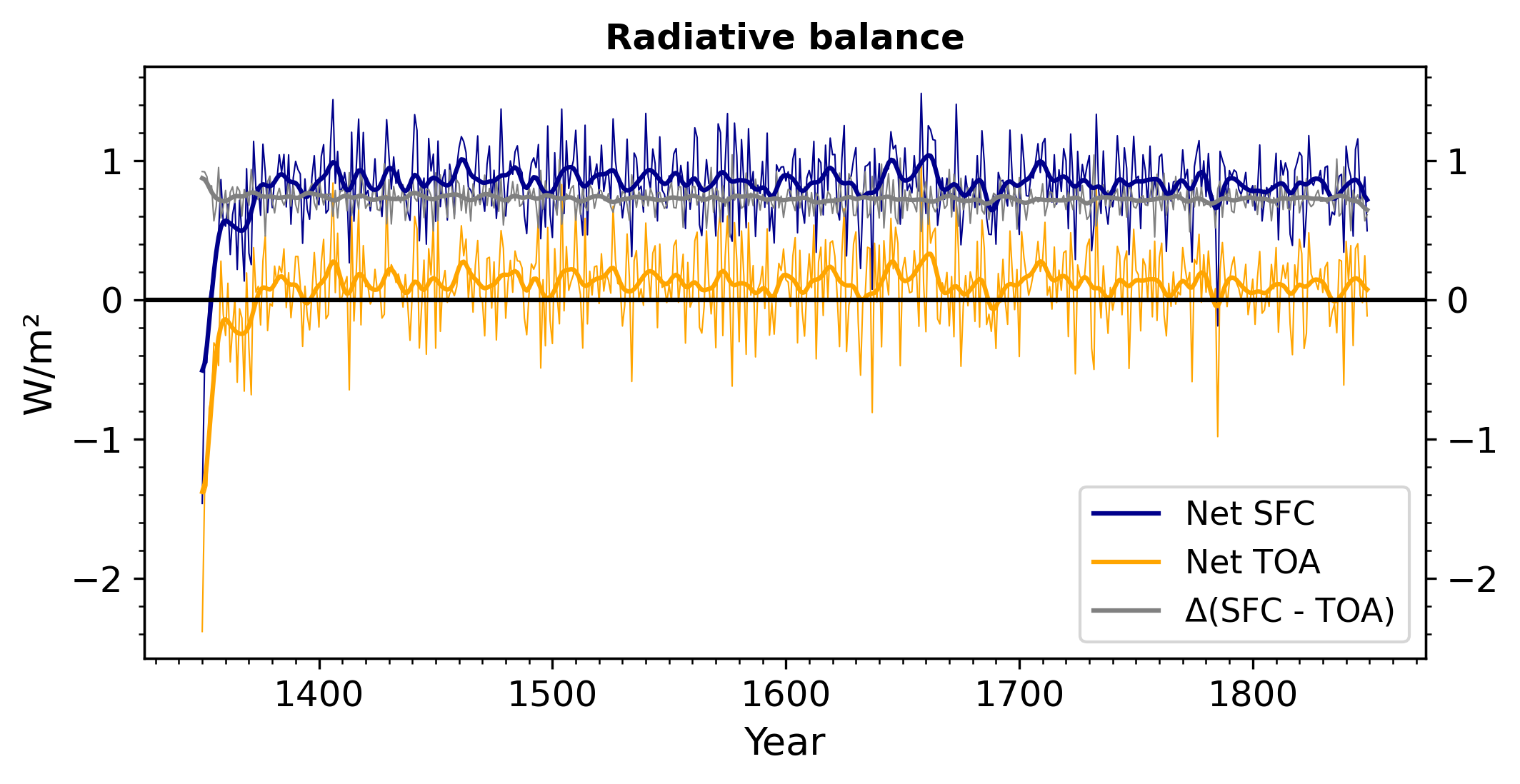

Spinup radiation budget

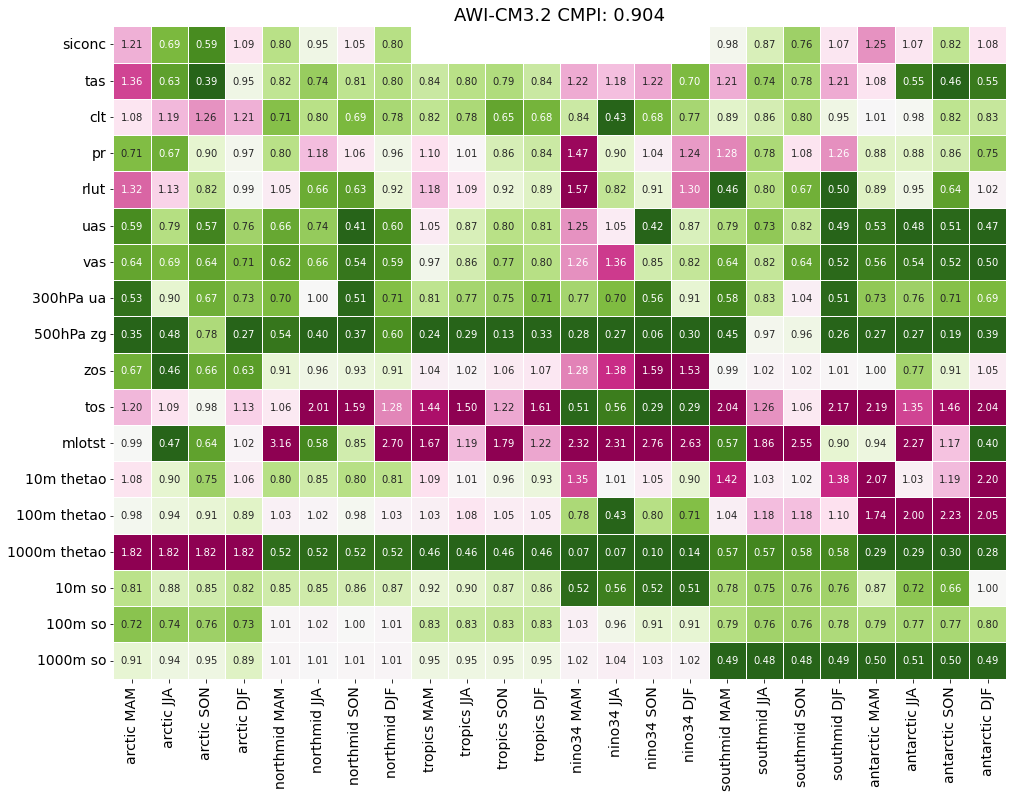

Climate model performance indicies

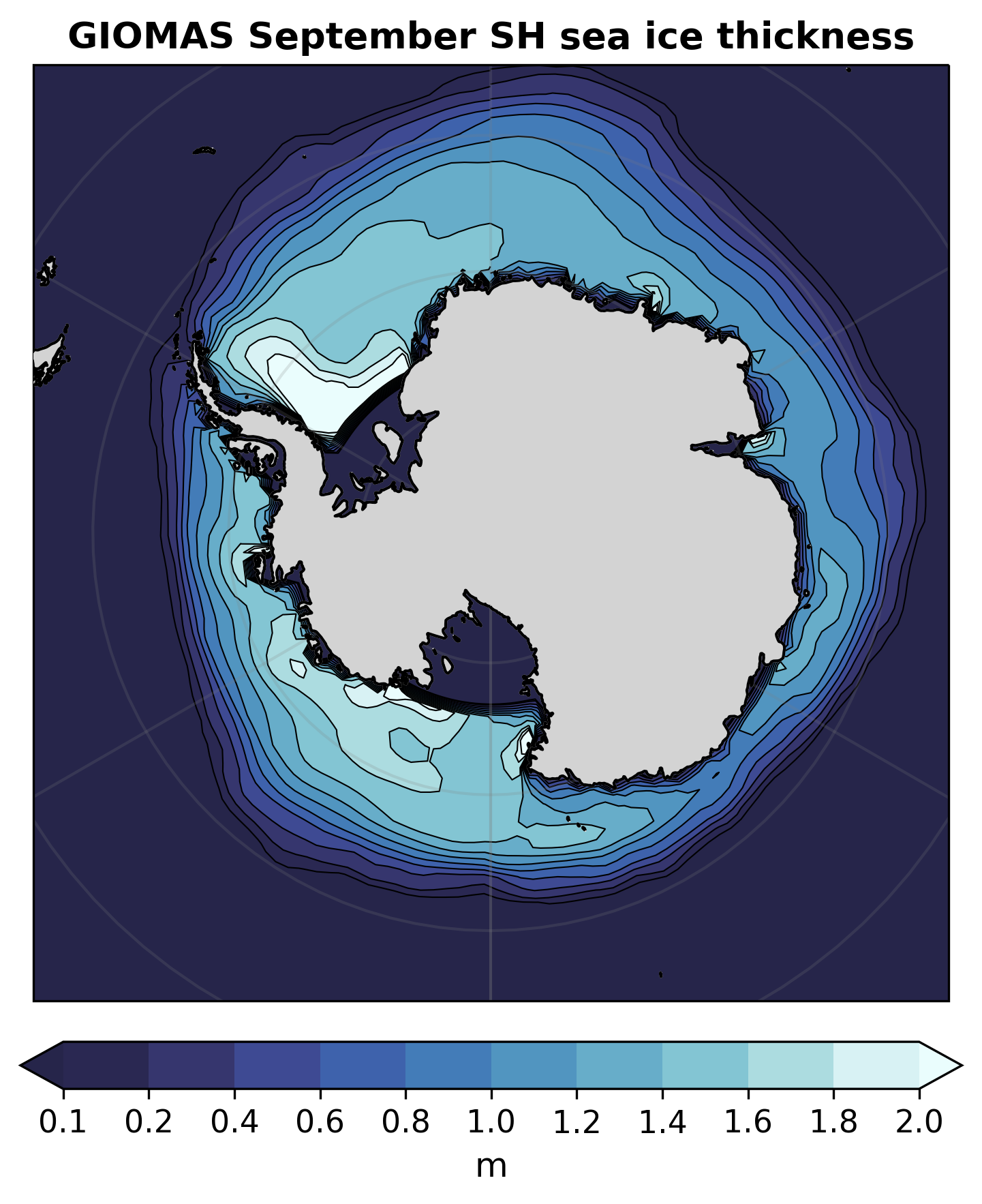

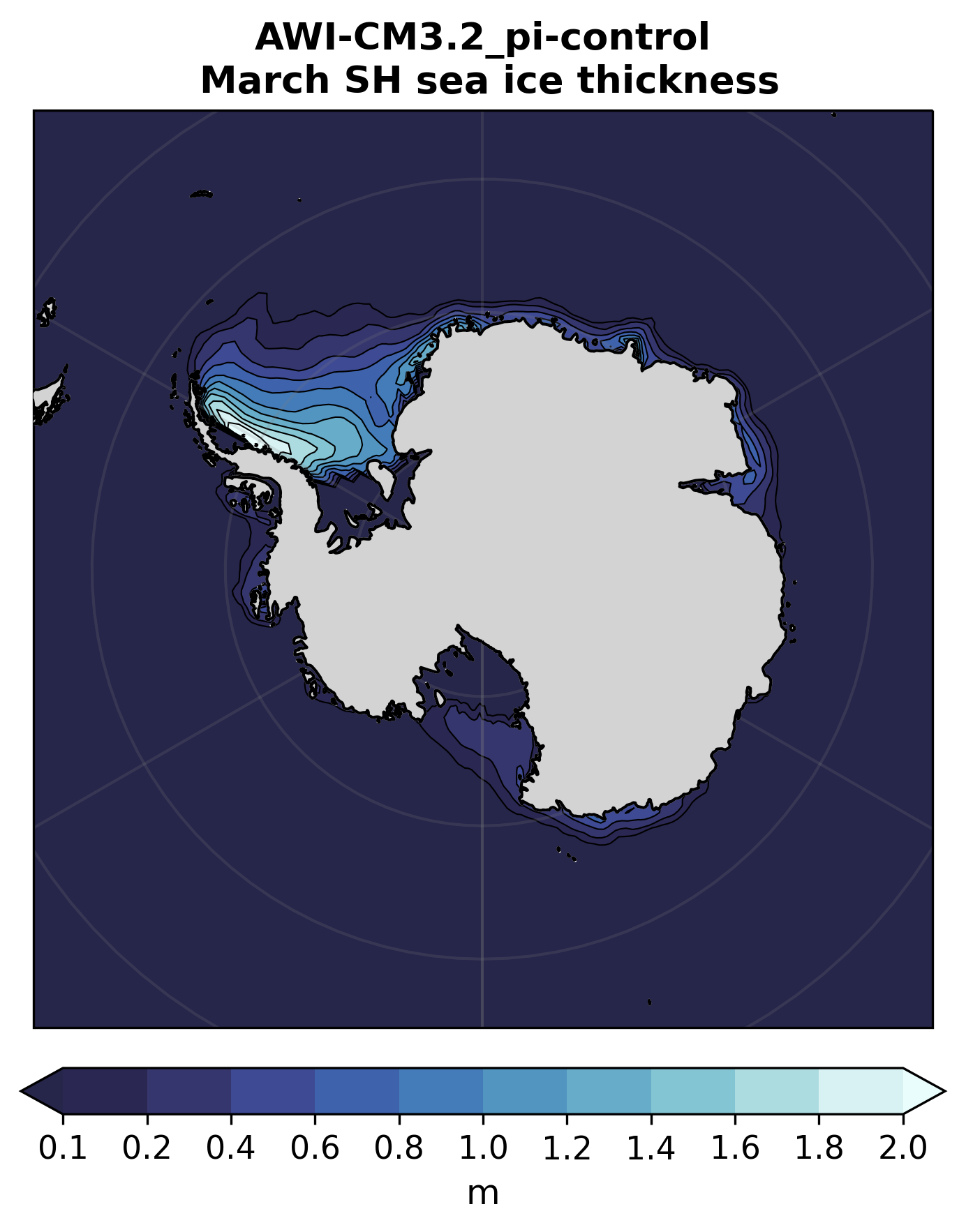

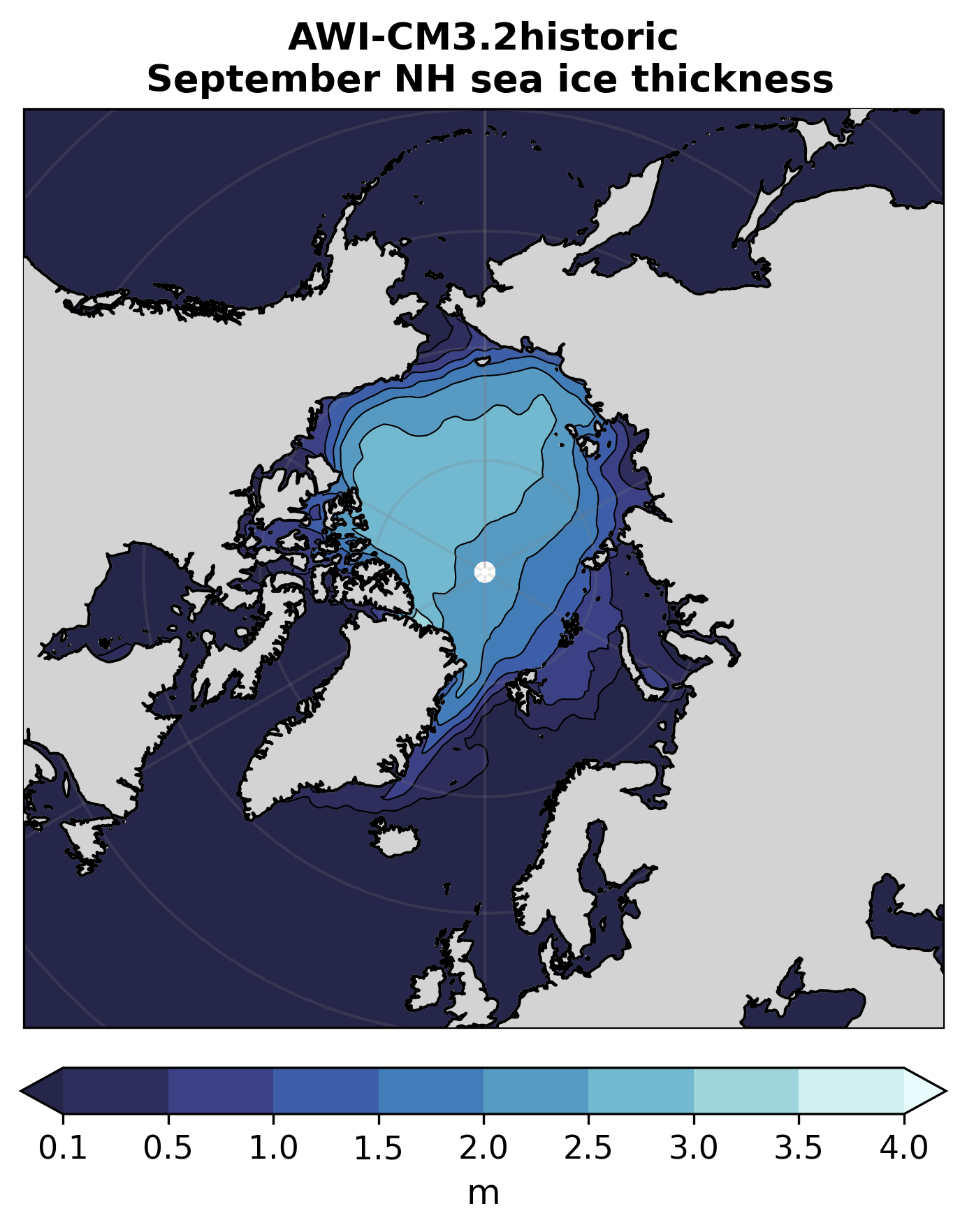

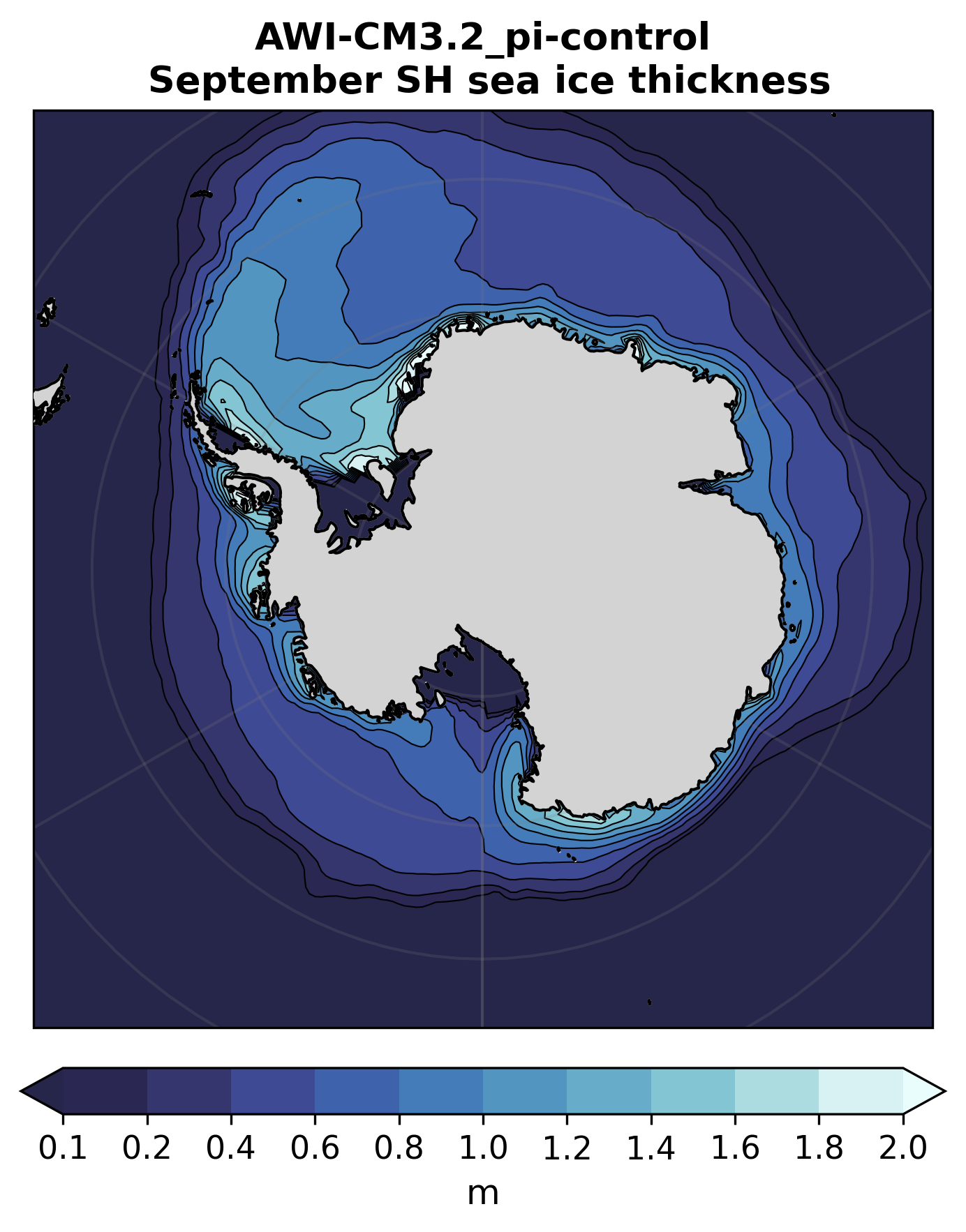

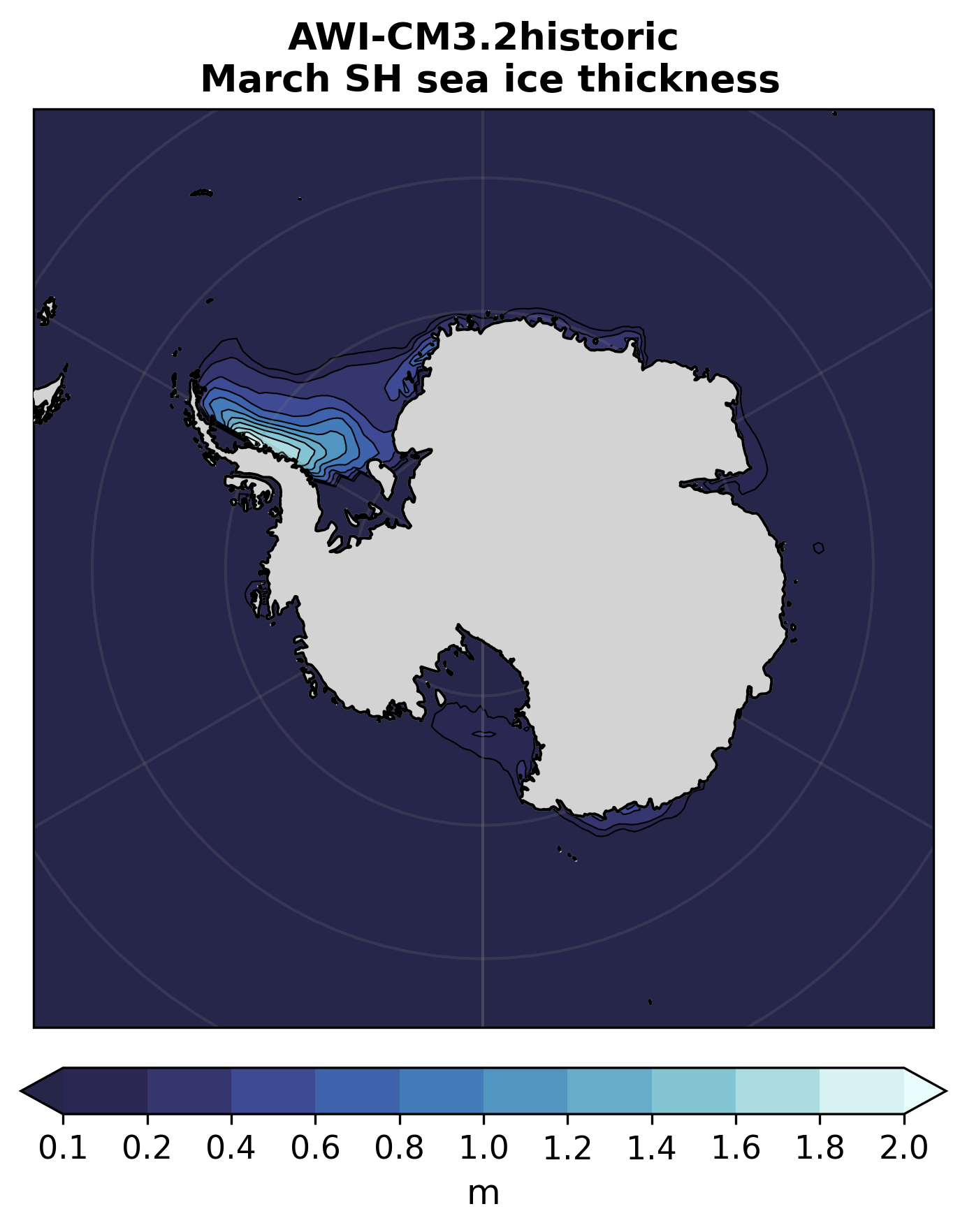

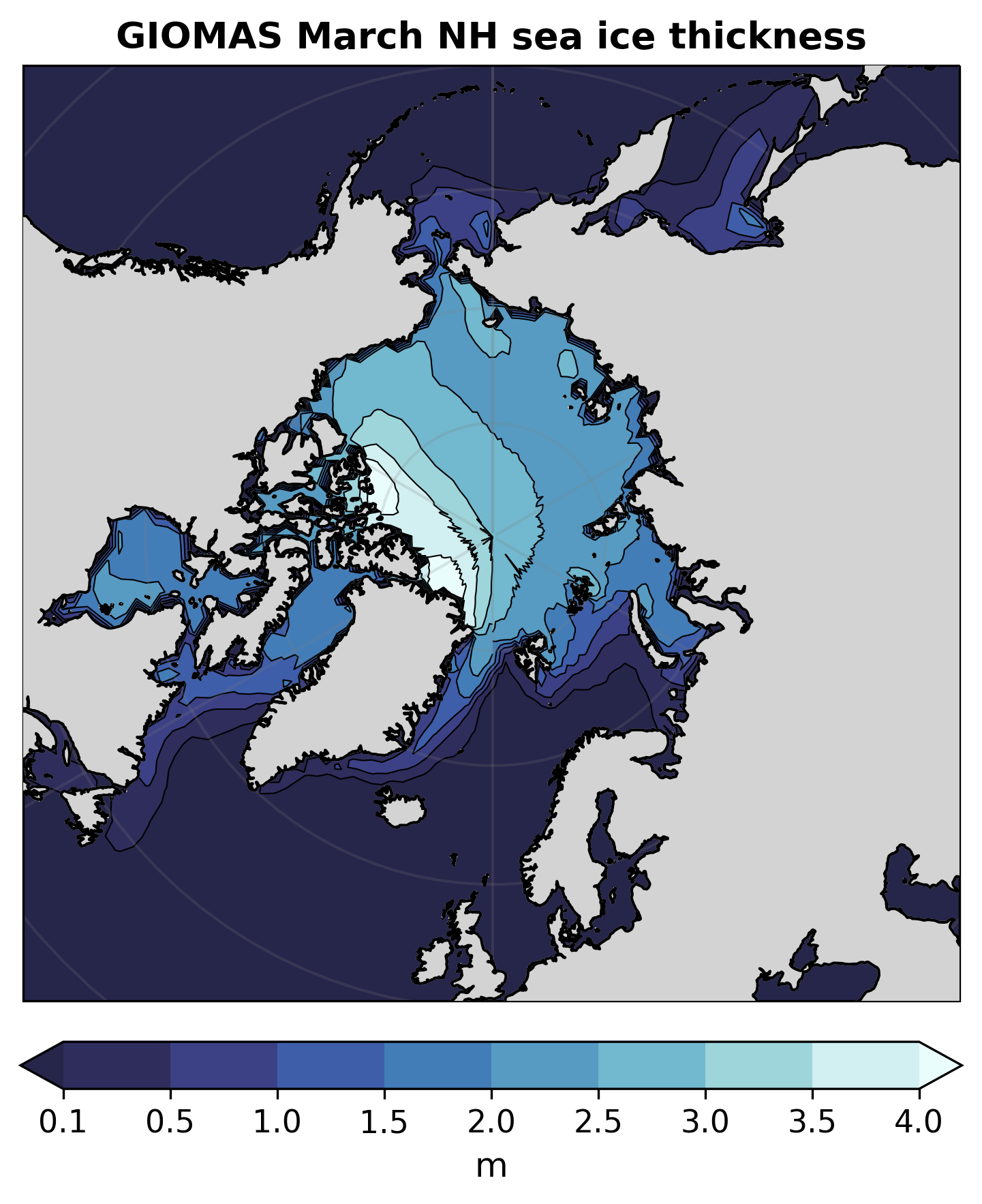

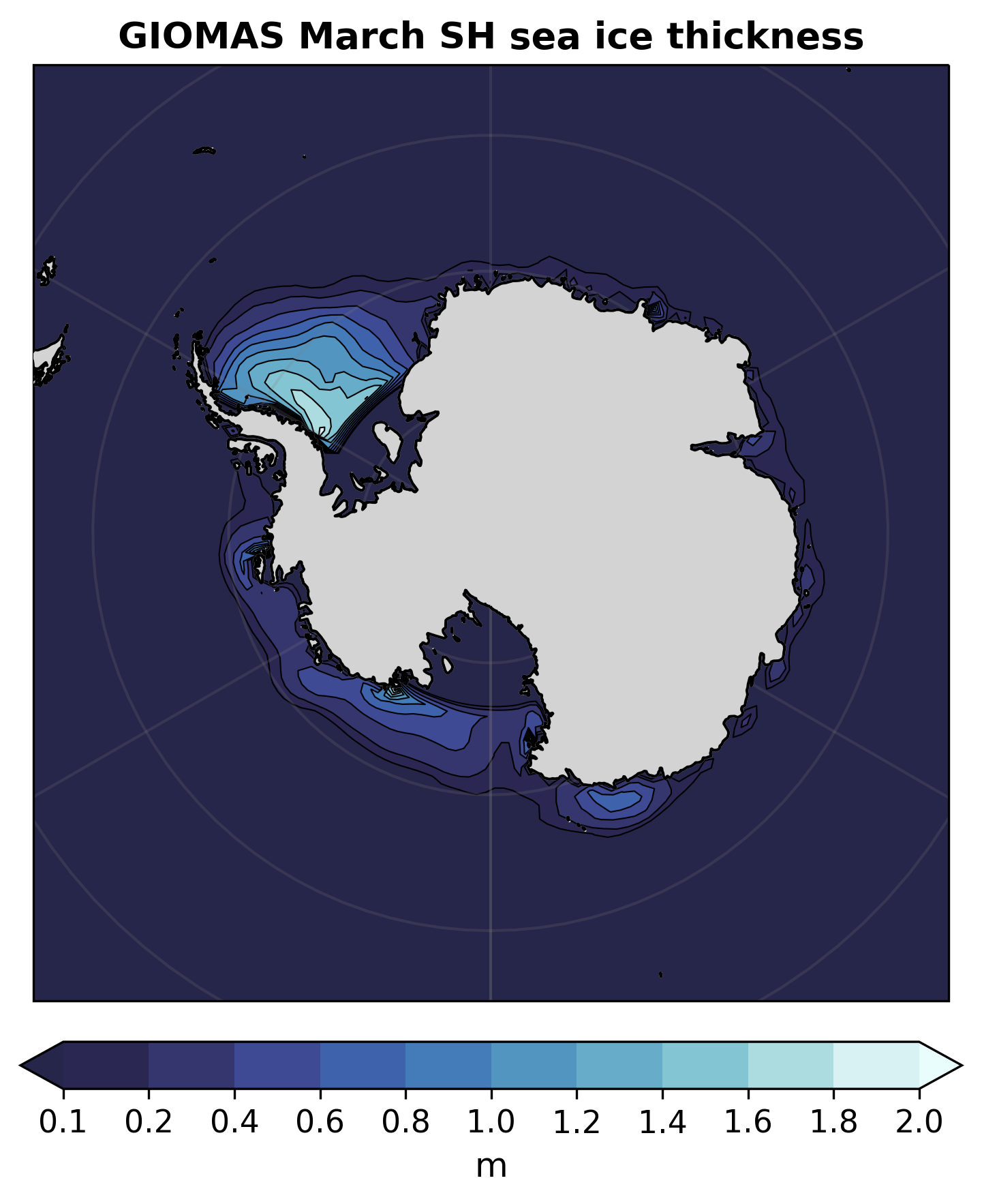

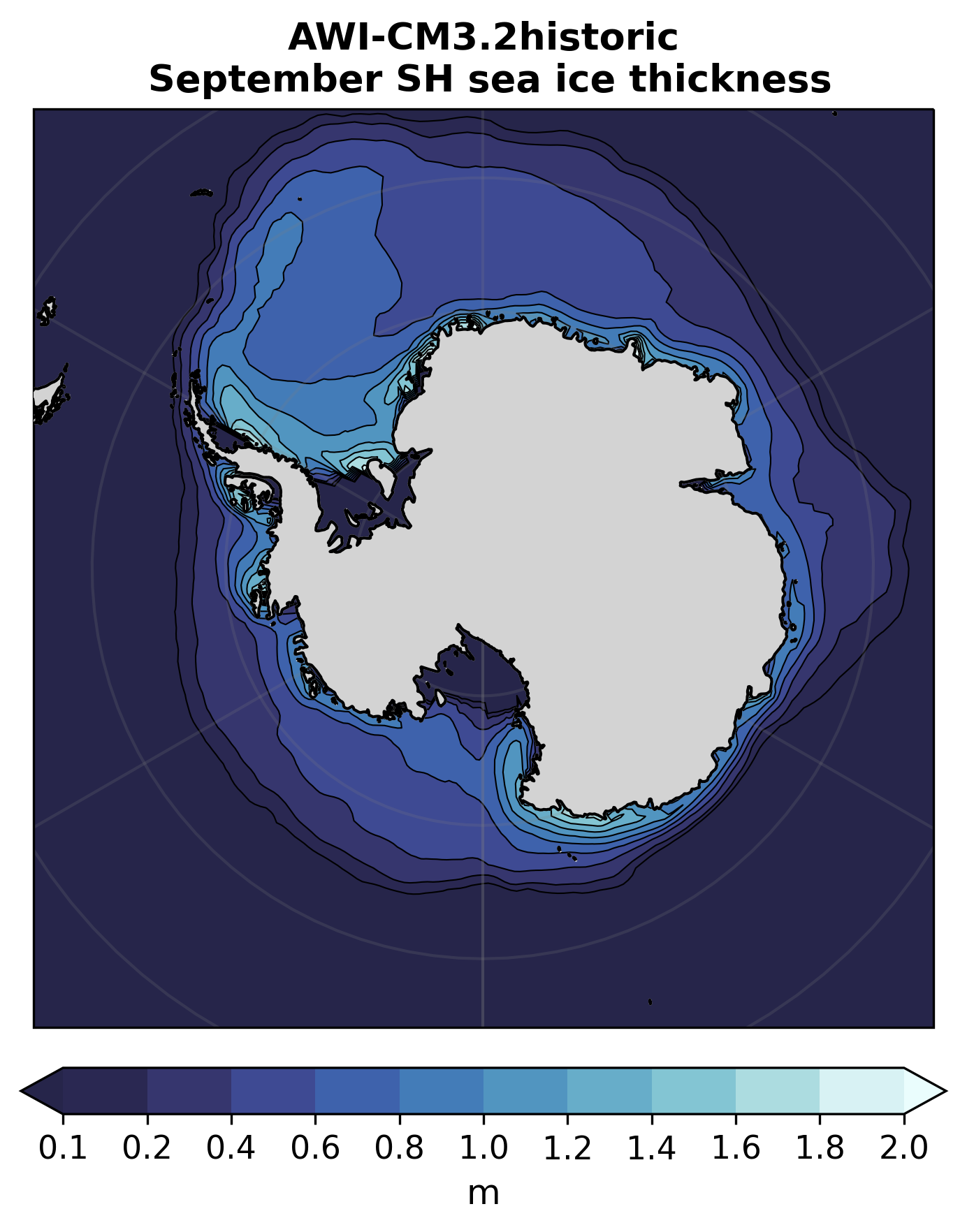

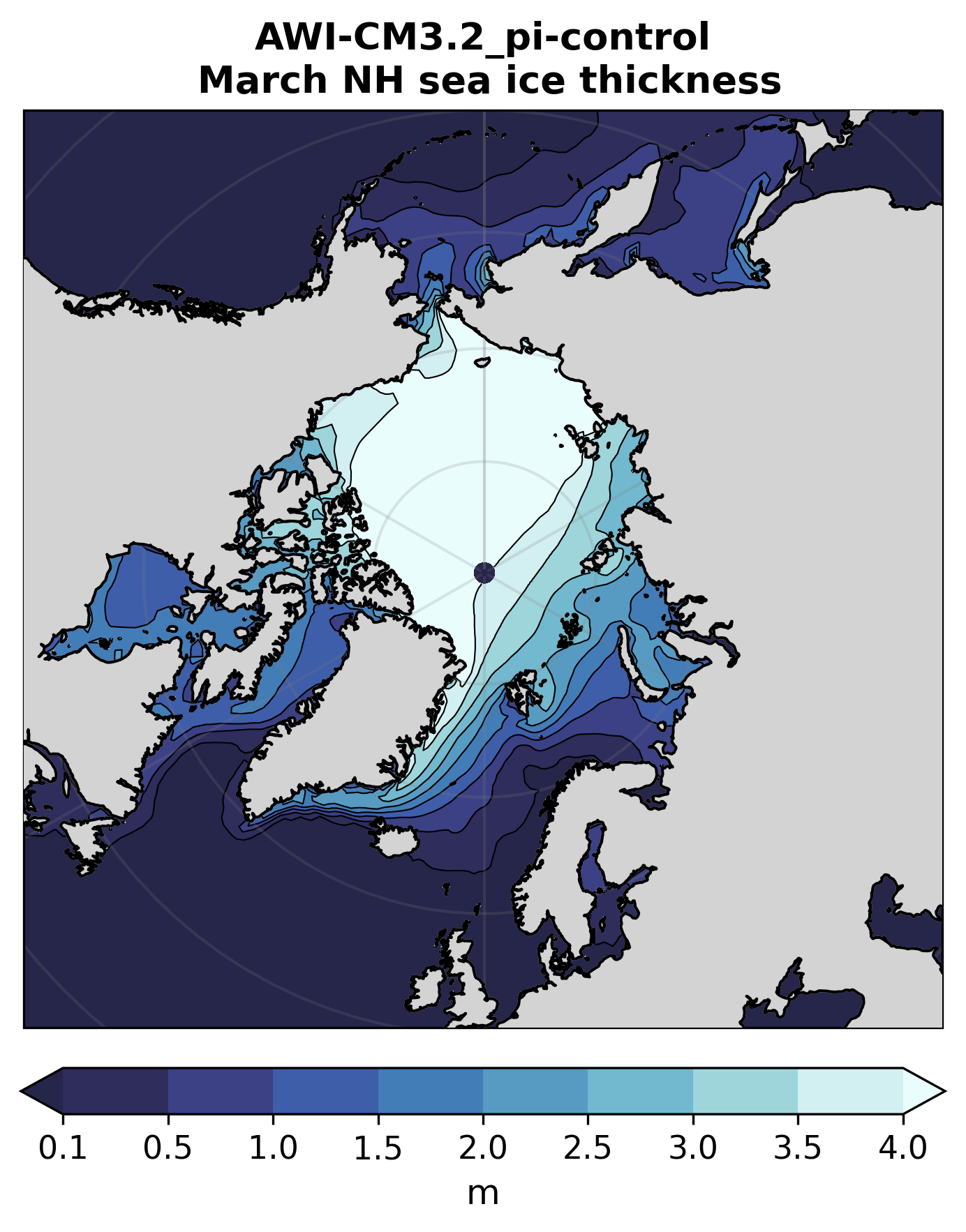

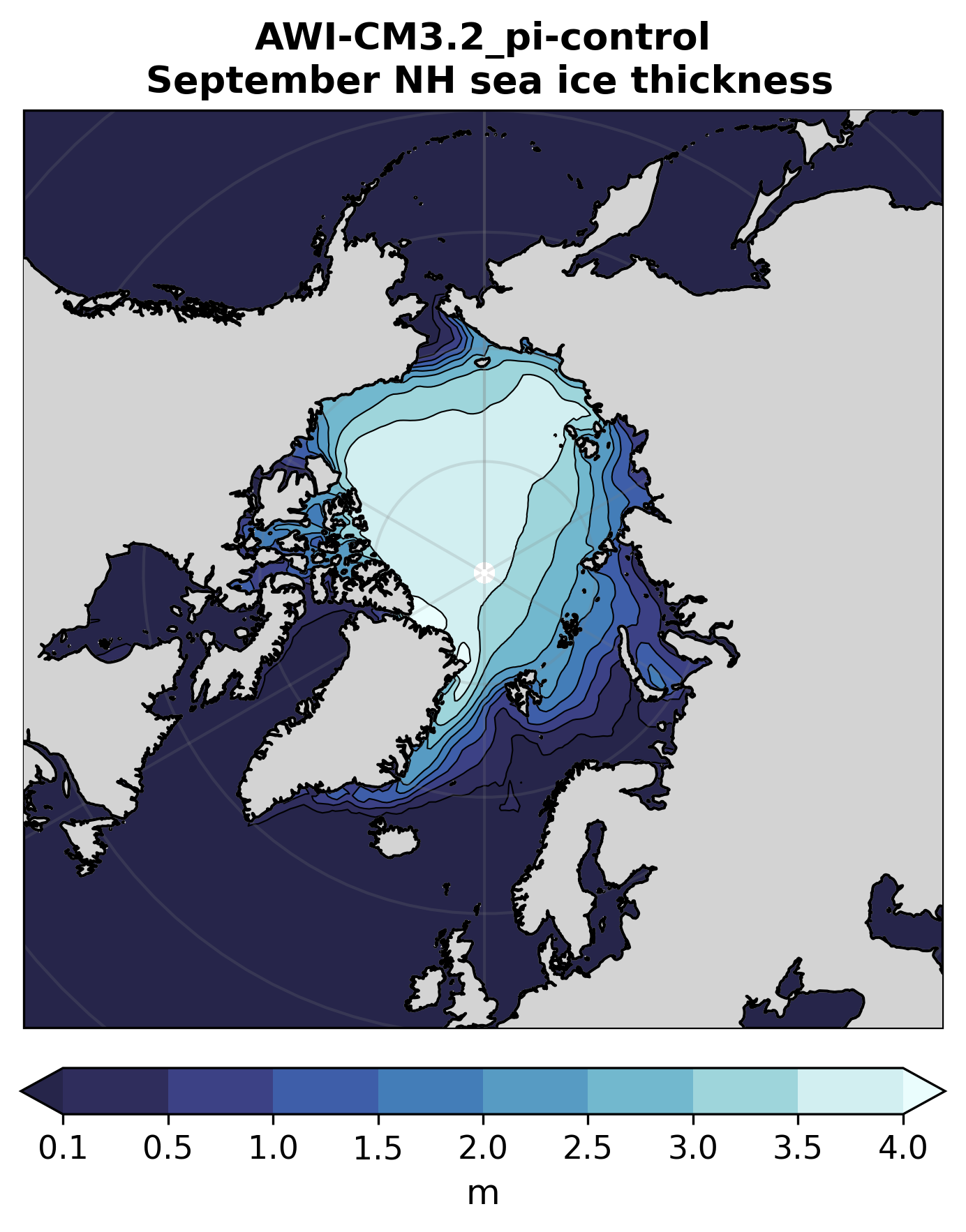

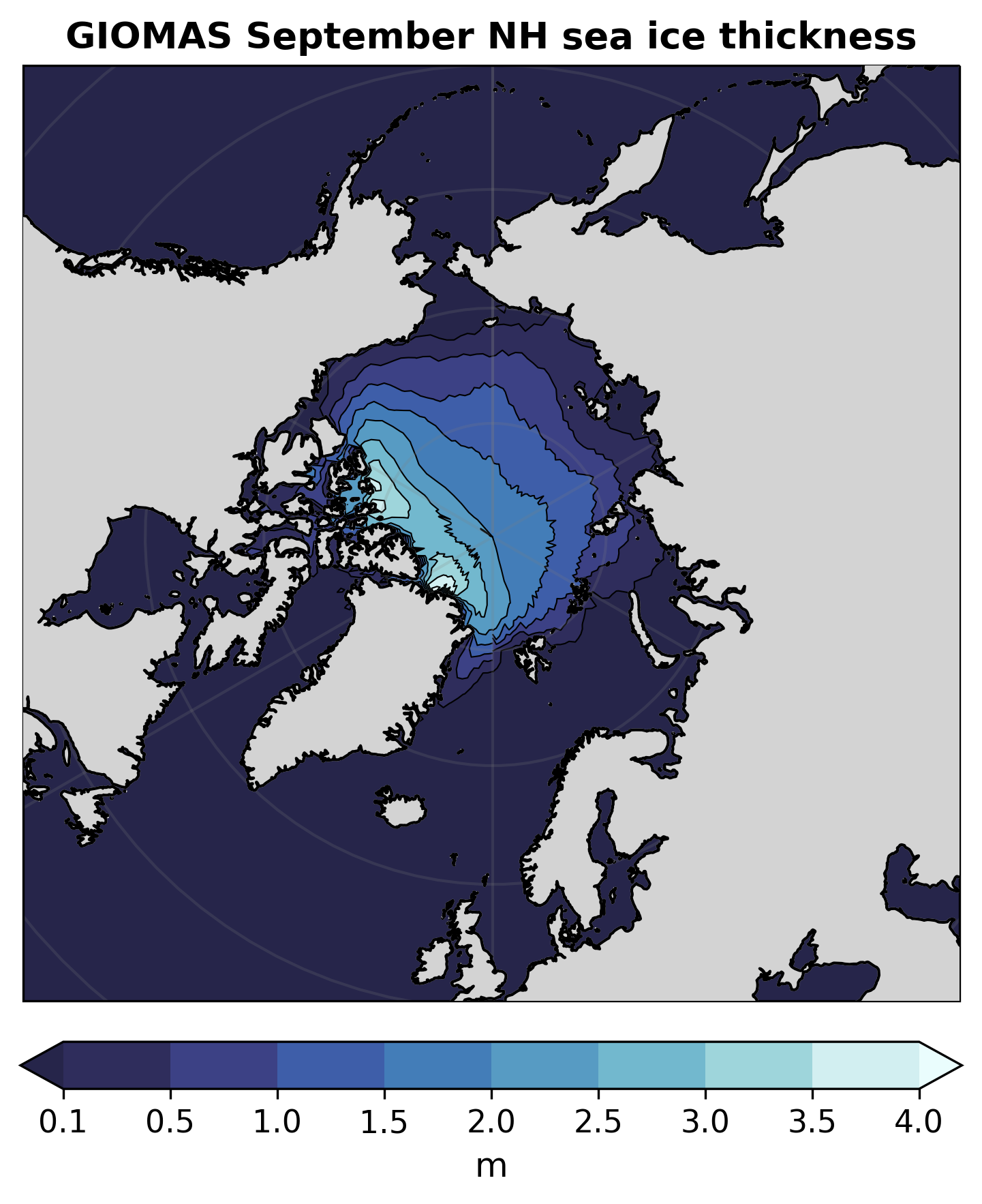

Sea ice thickness

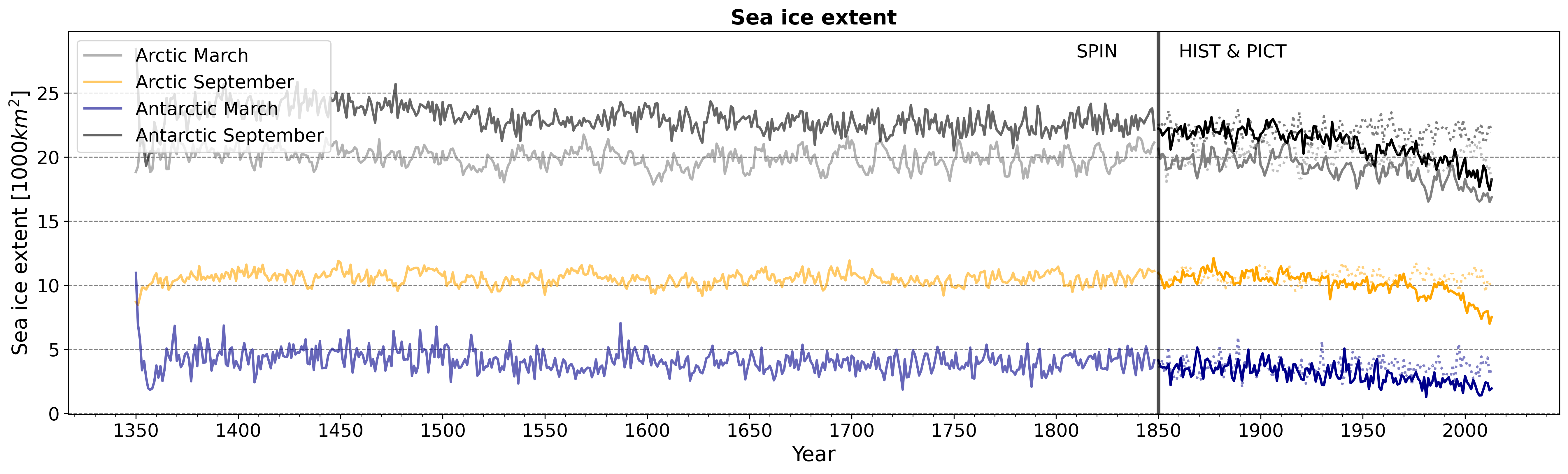

Sea ice extent

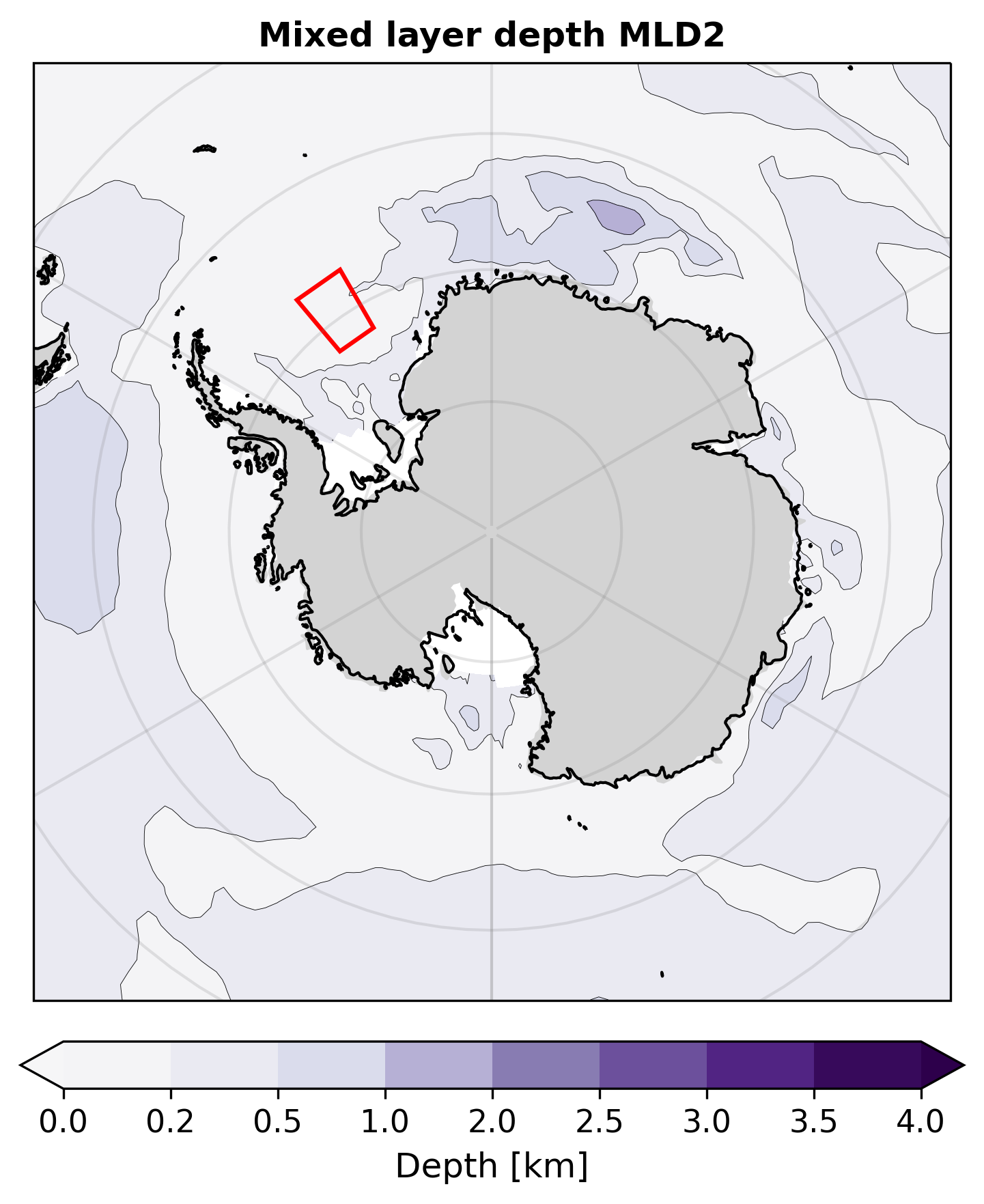

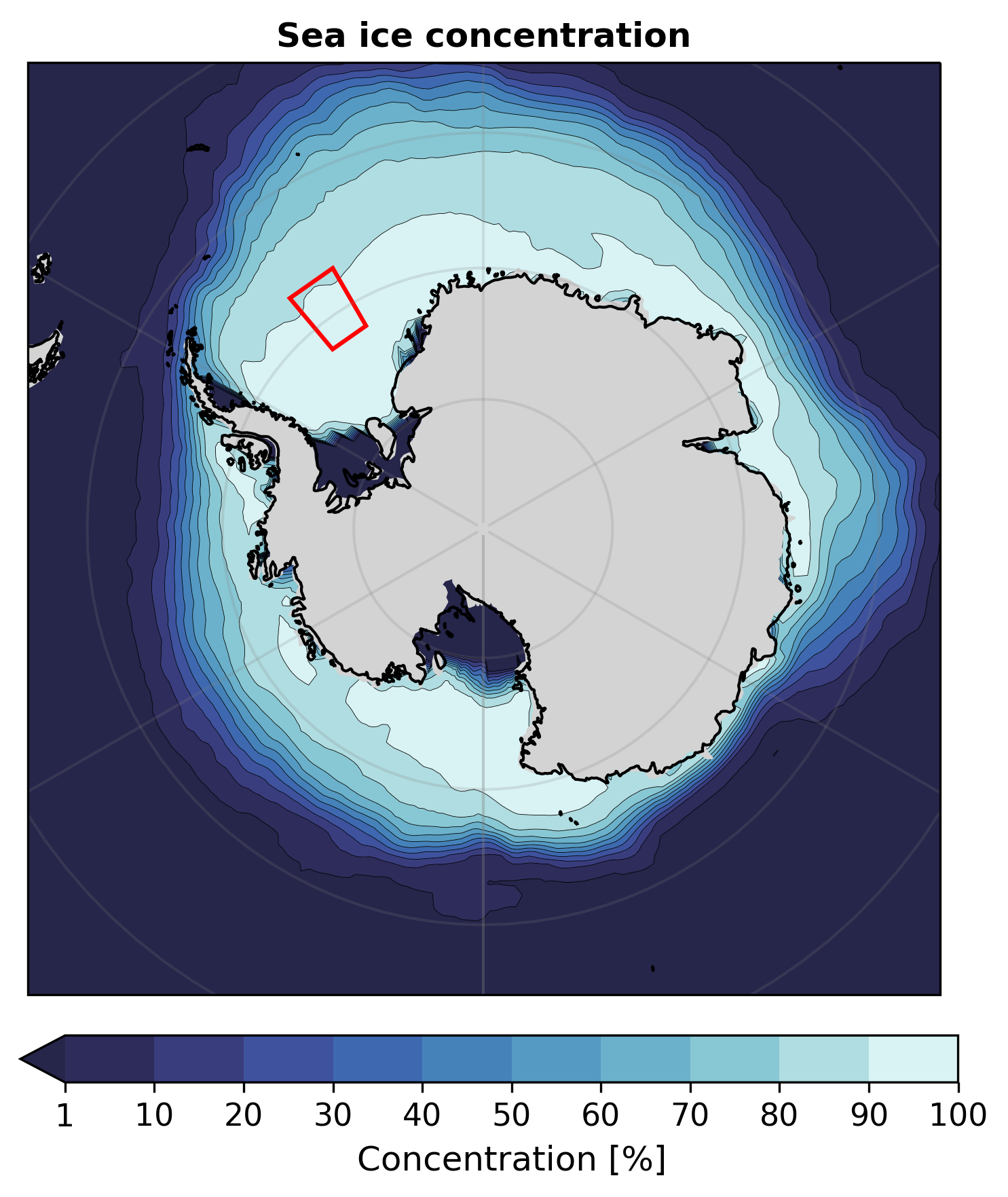

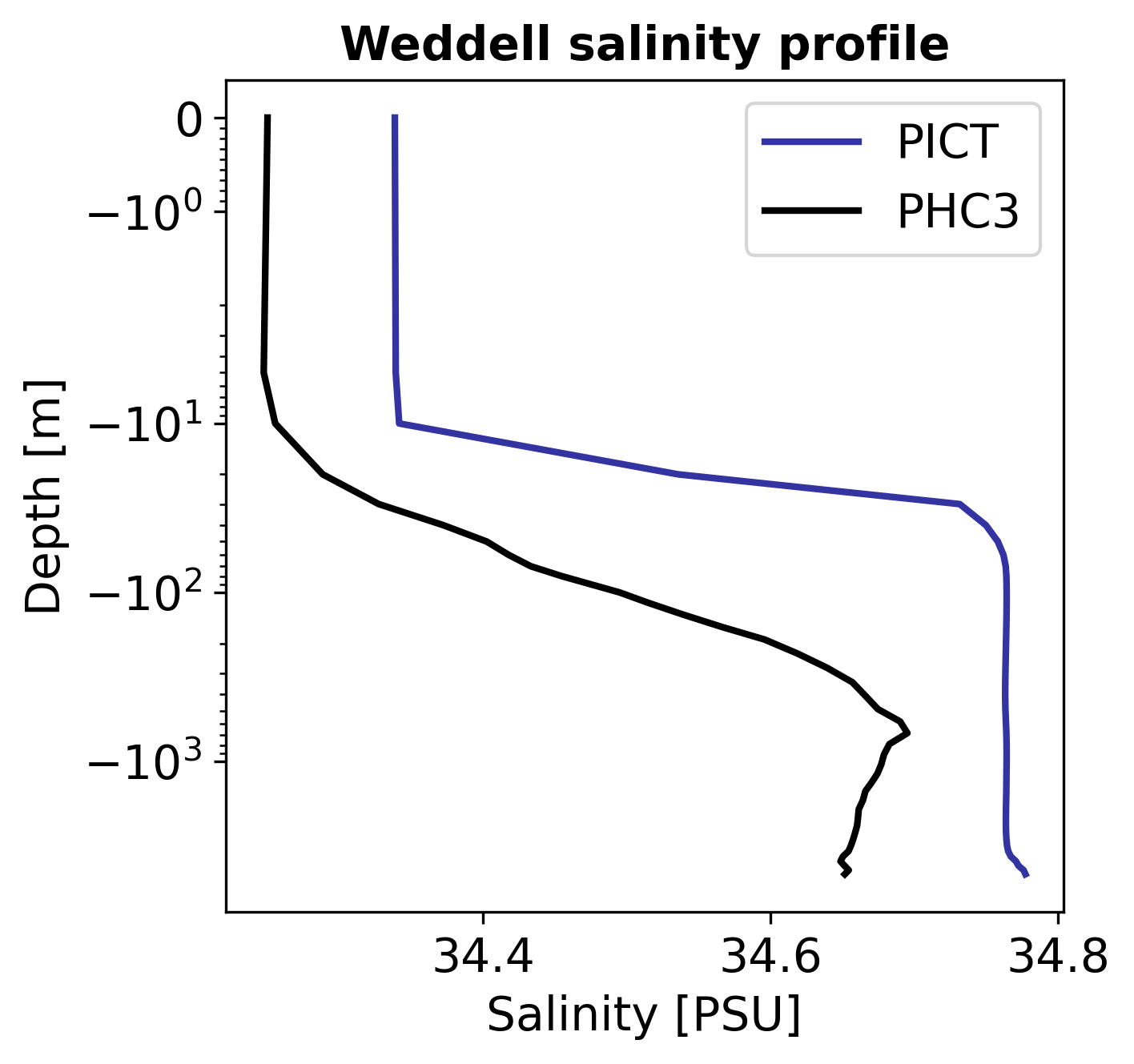

Weddell sea

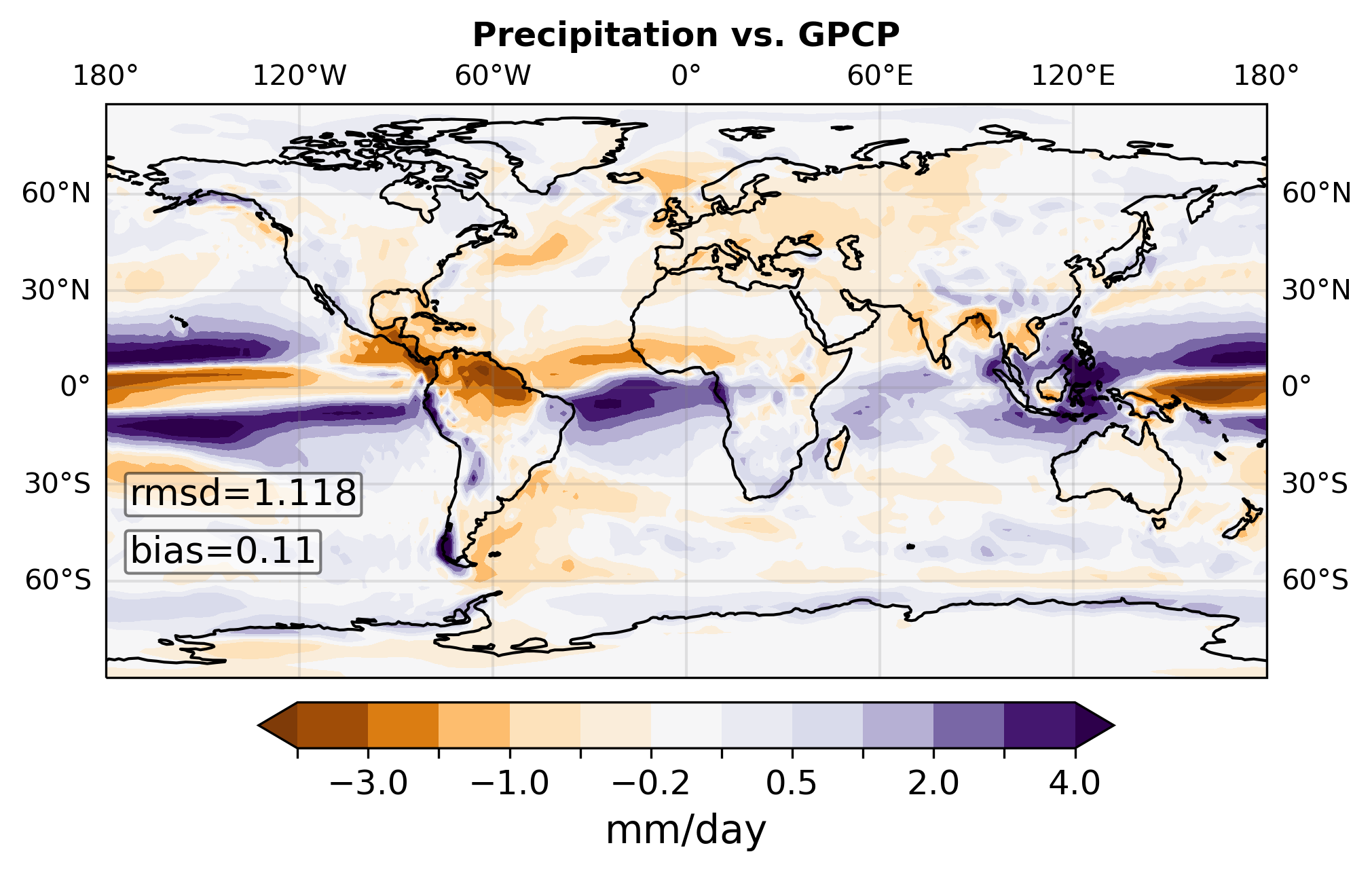

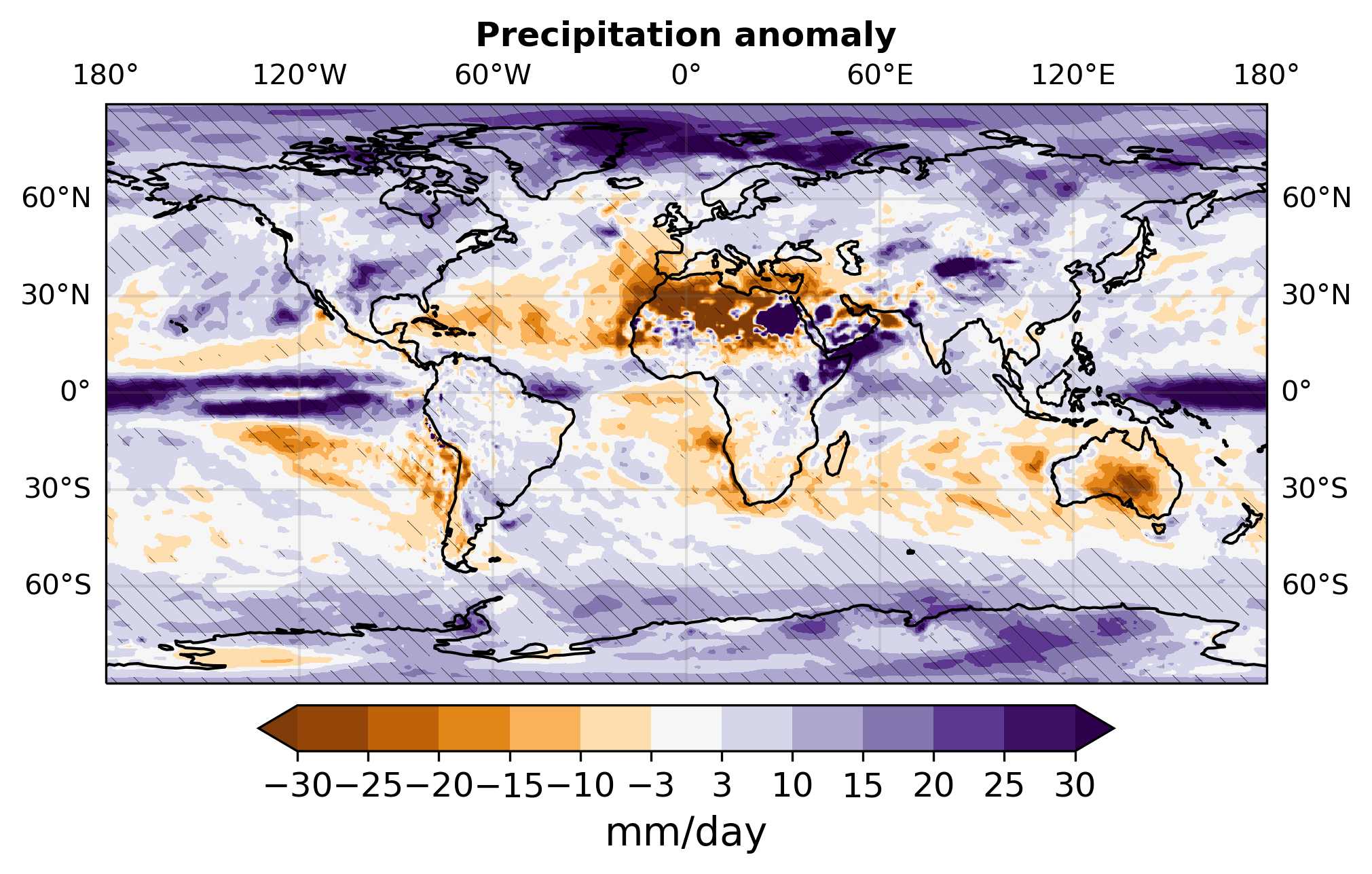

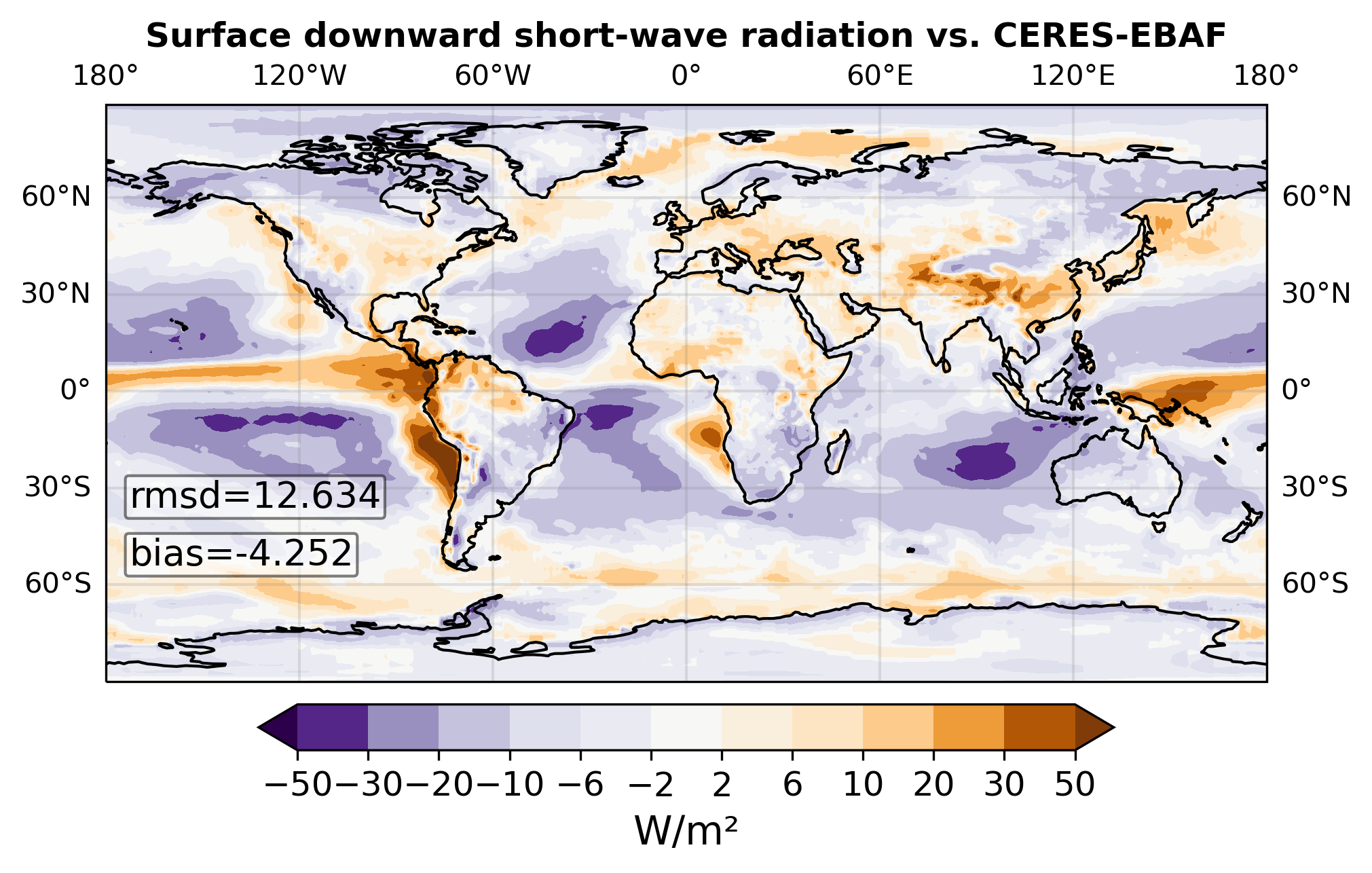

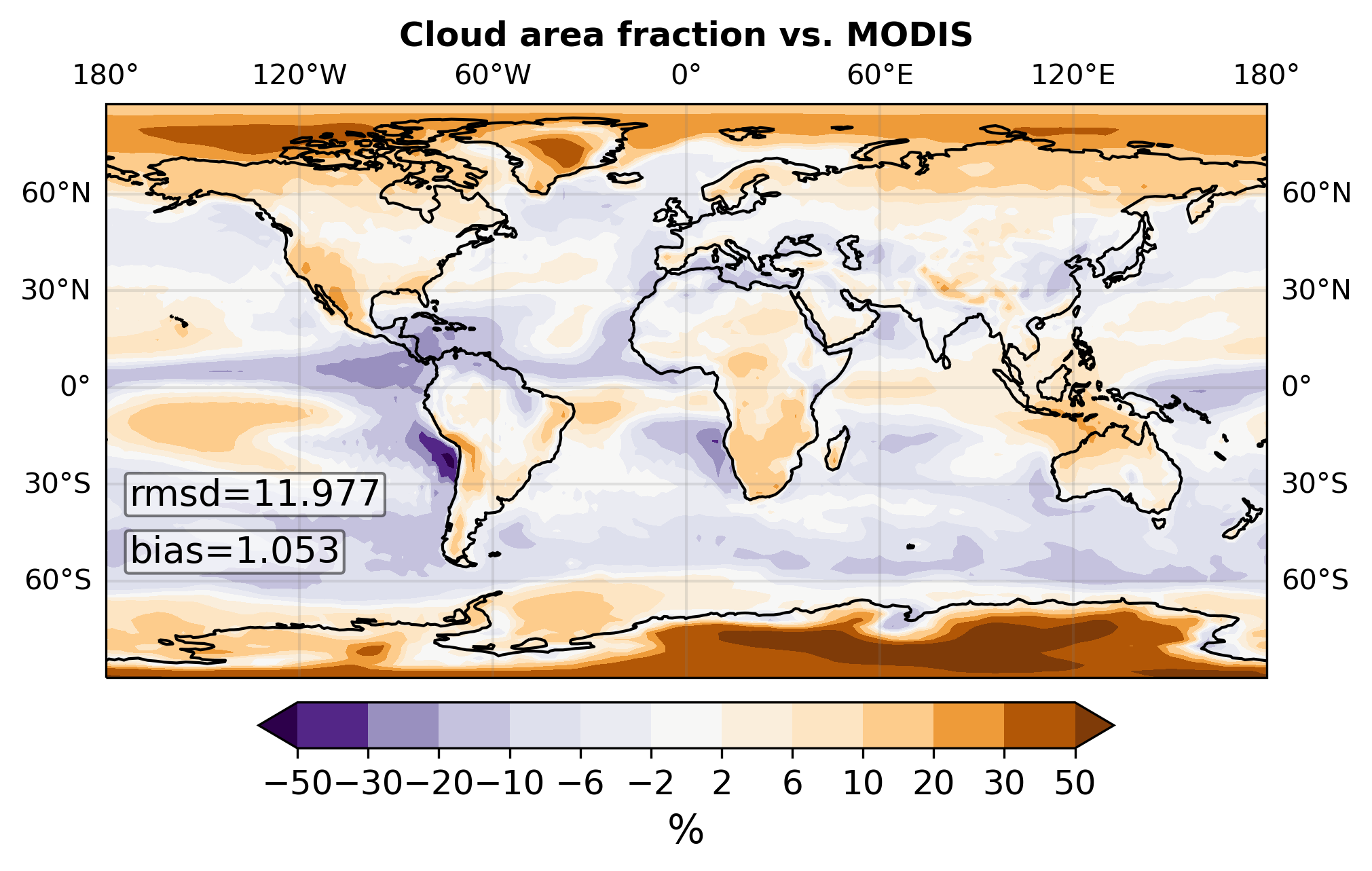

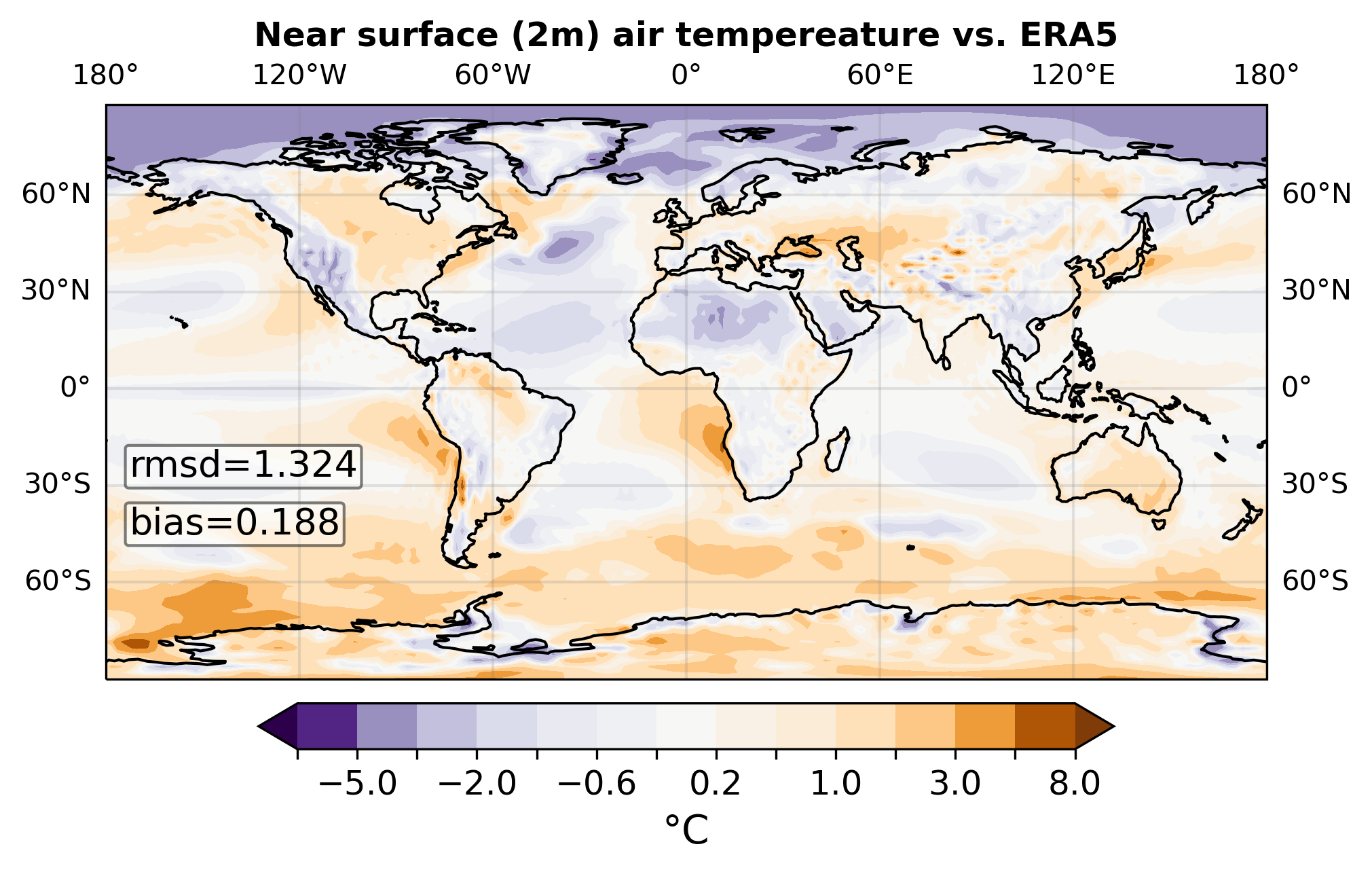

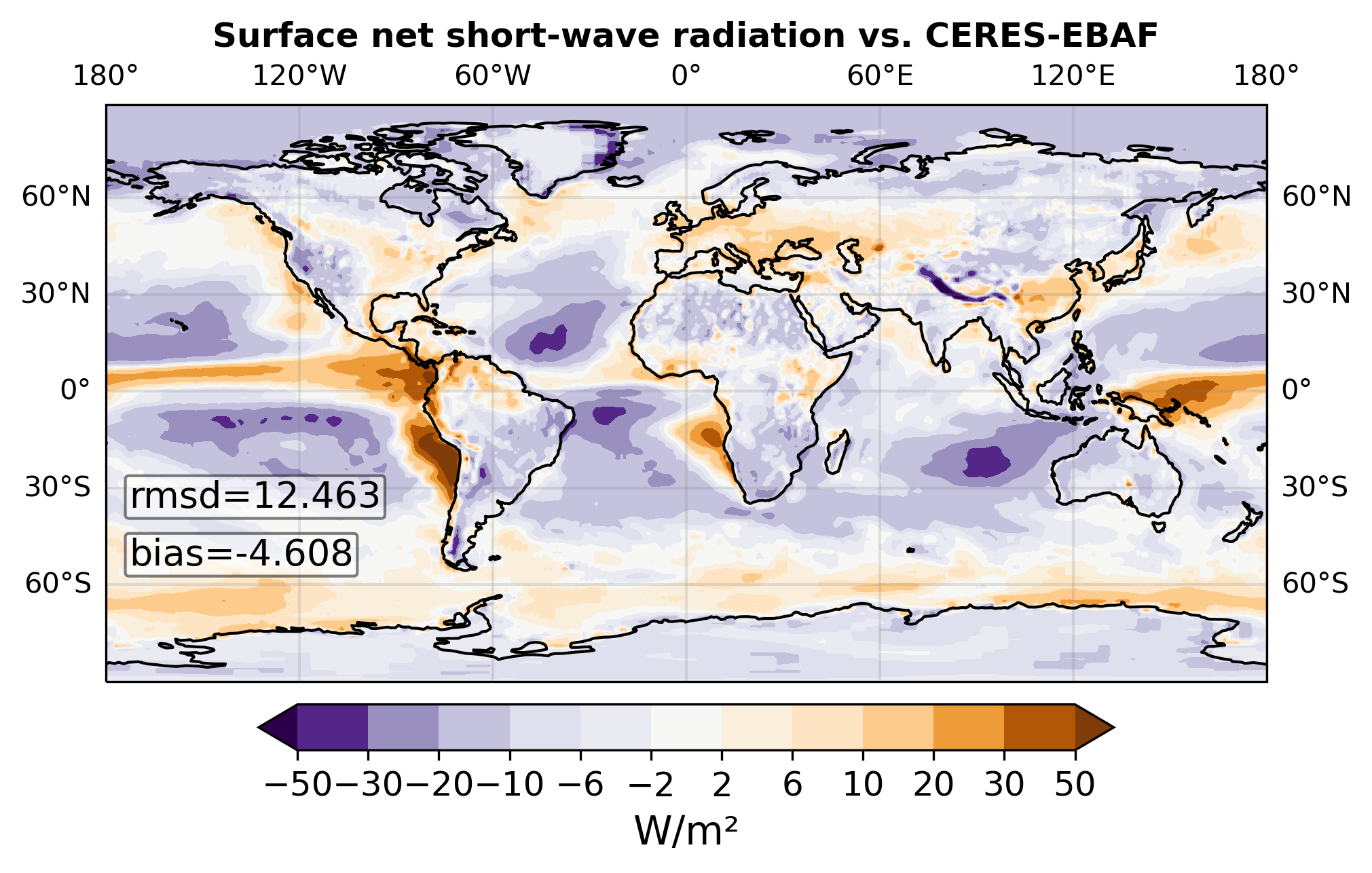

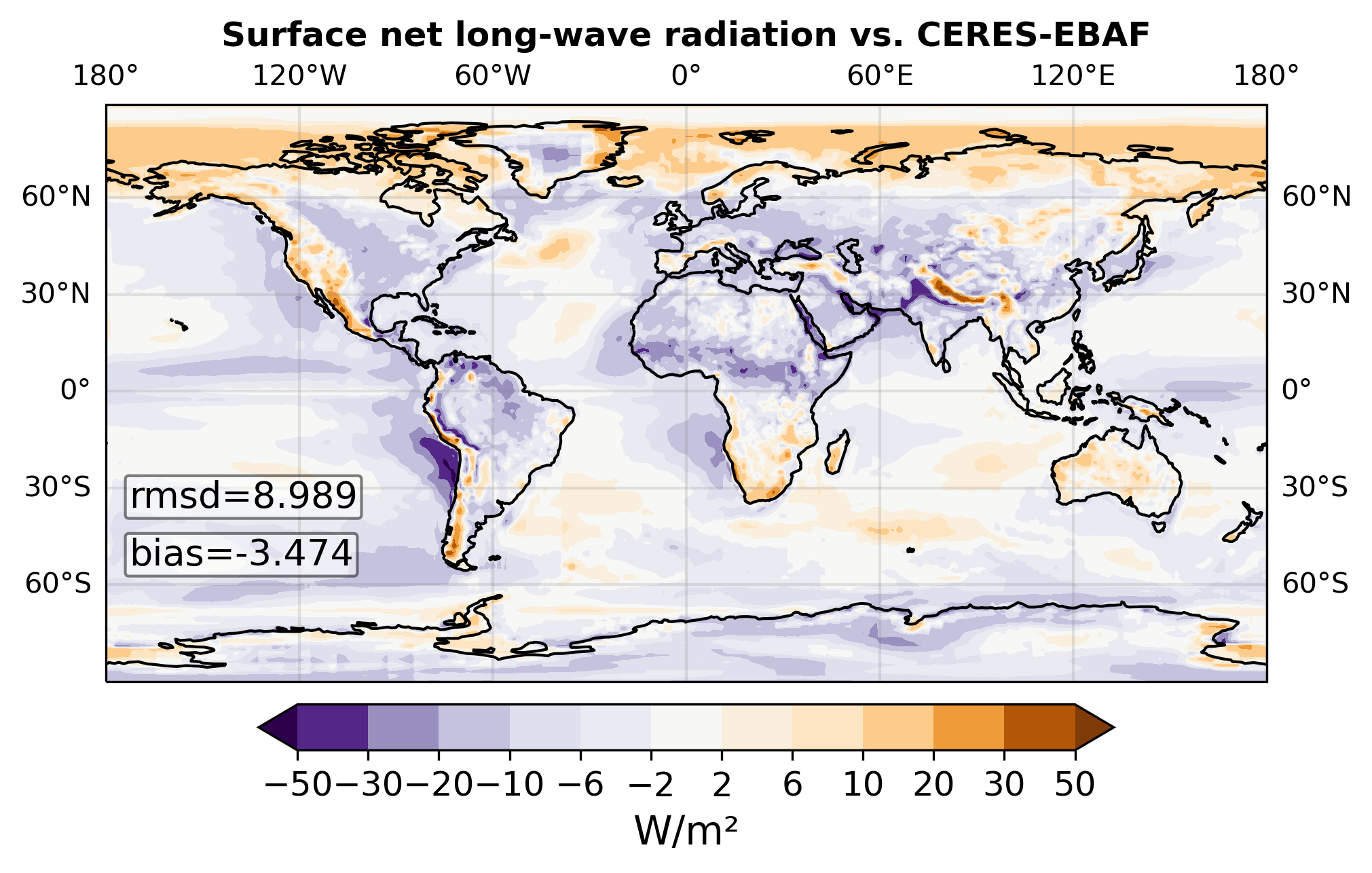

Atmosphere biases

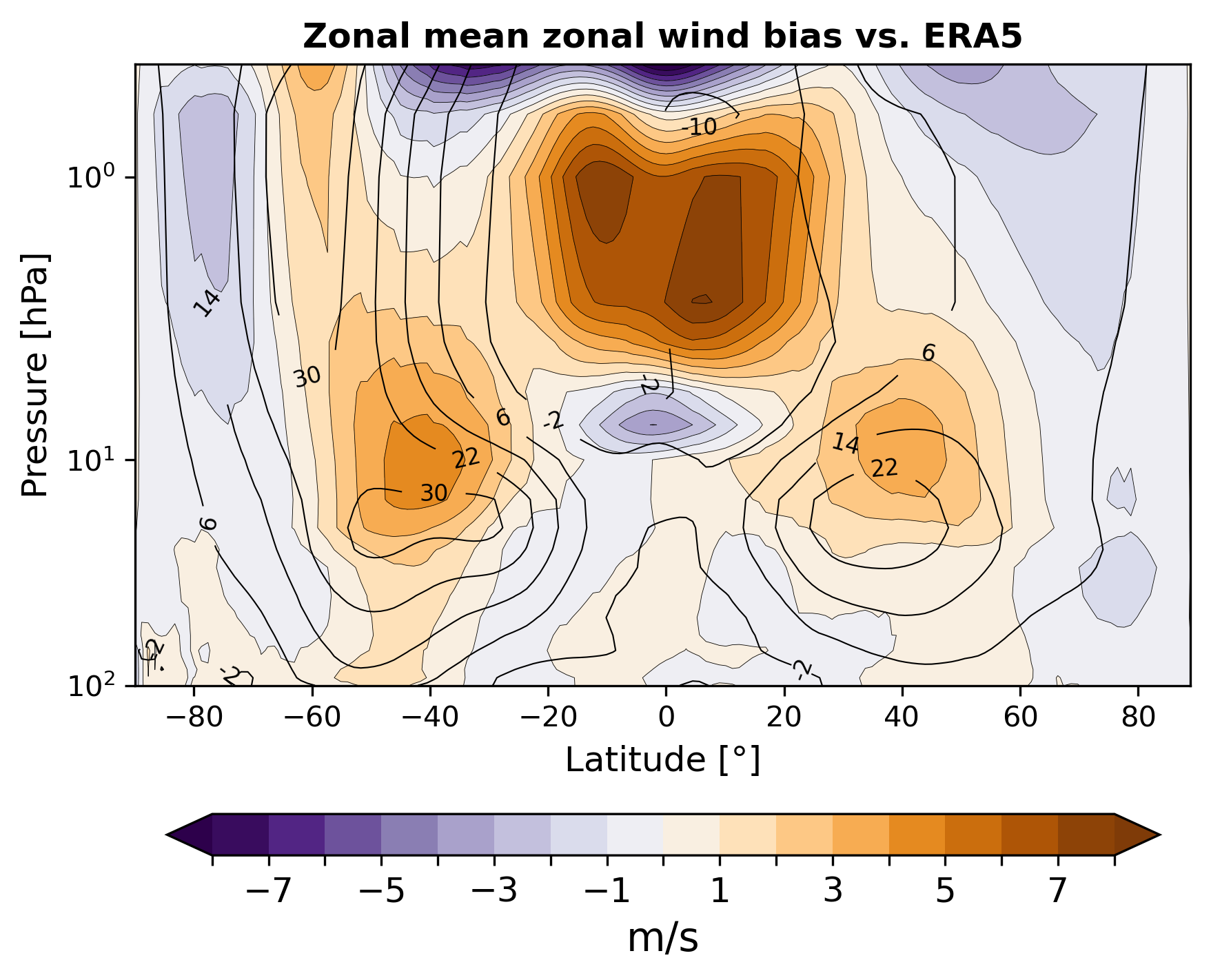

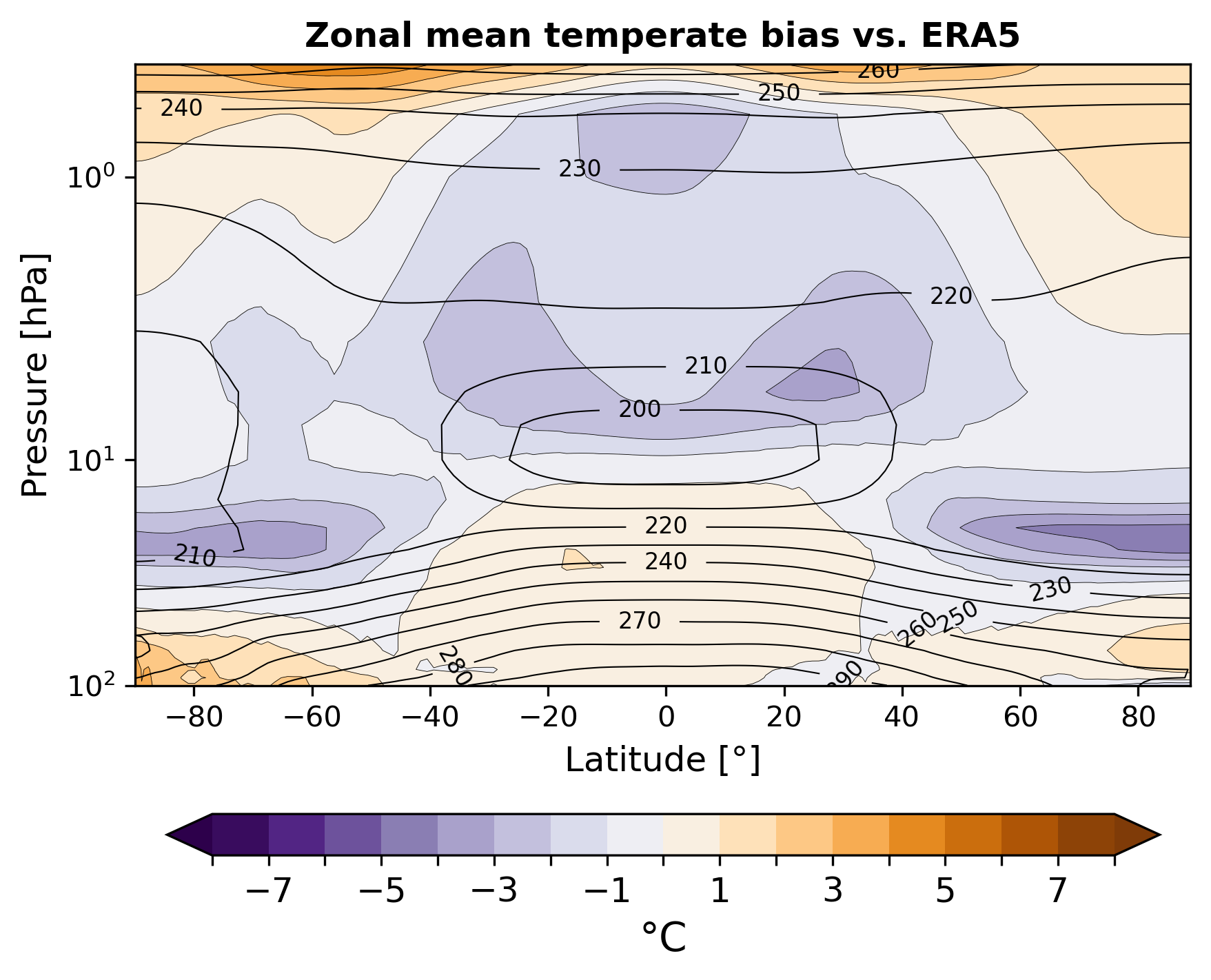

Zonal mean biases

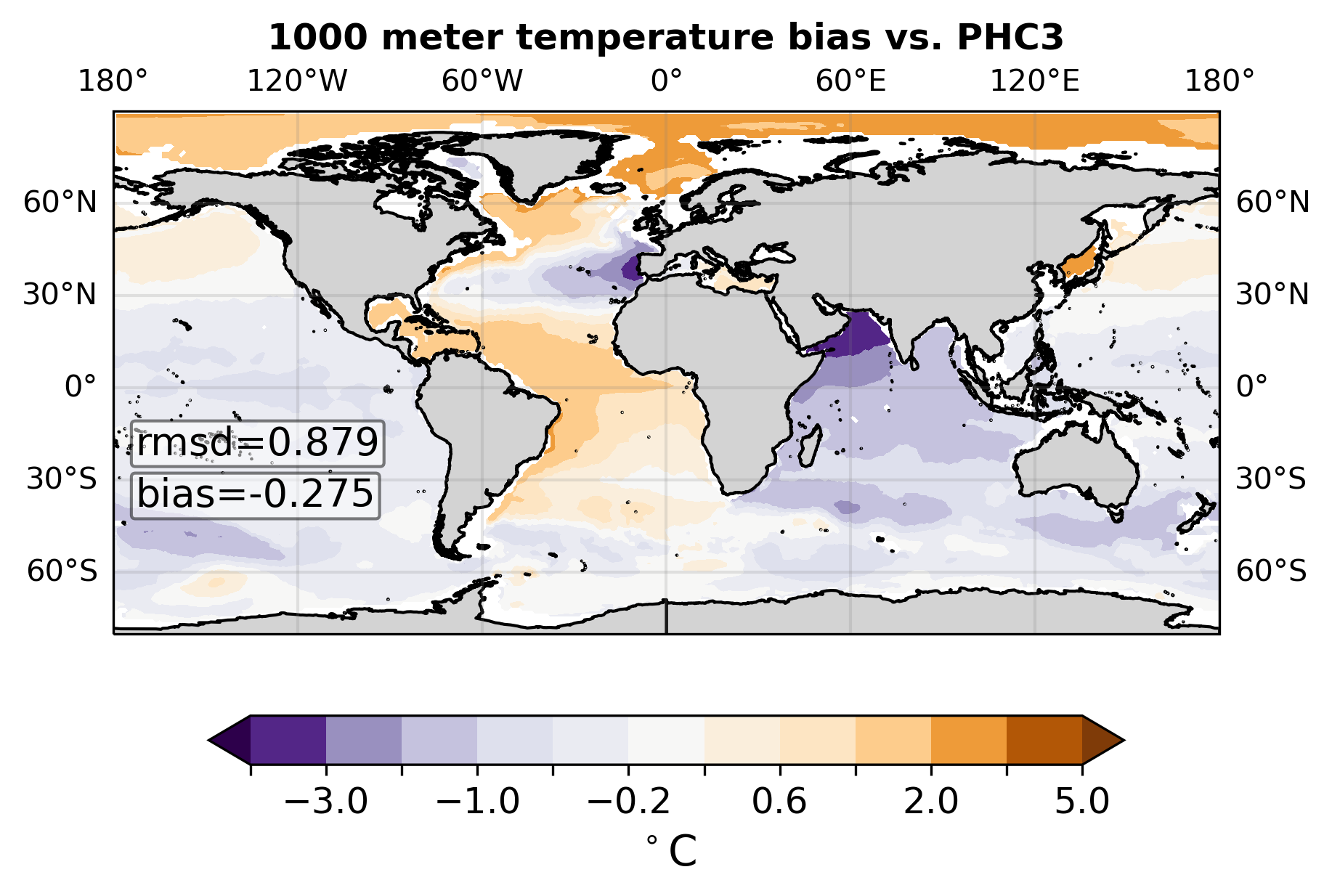

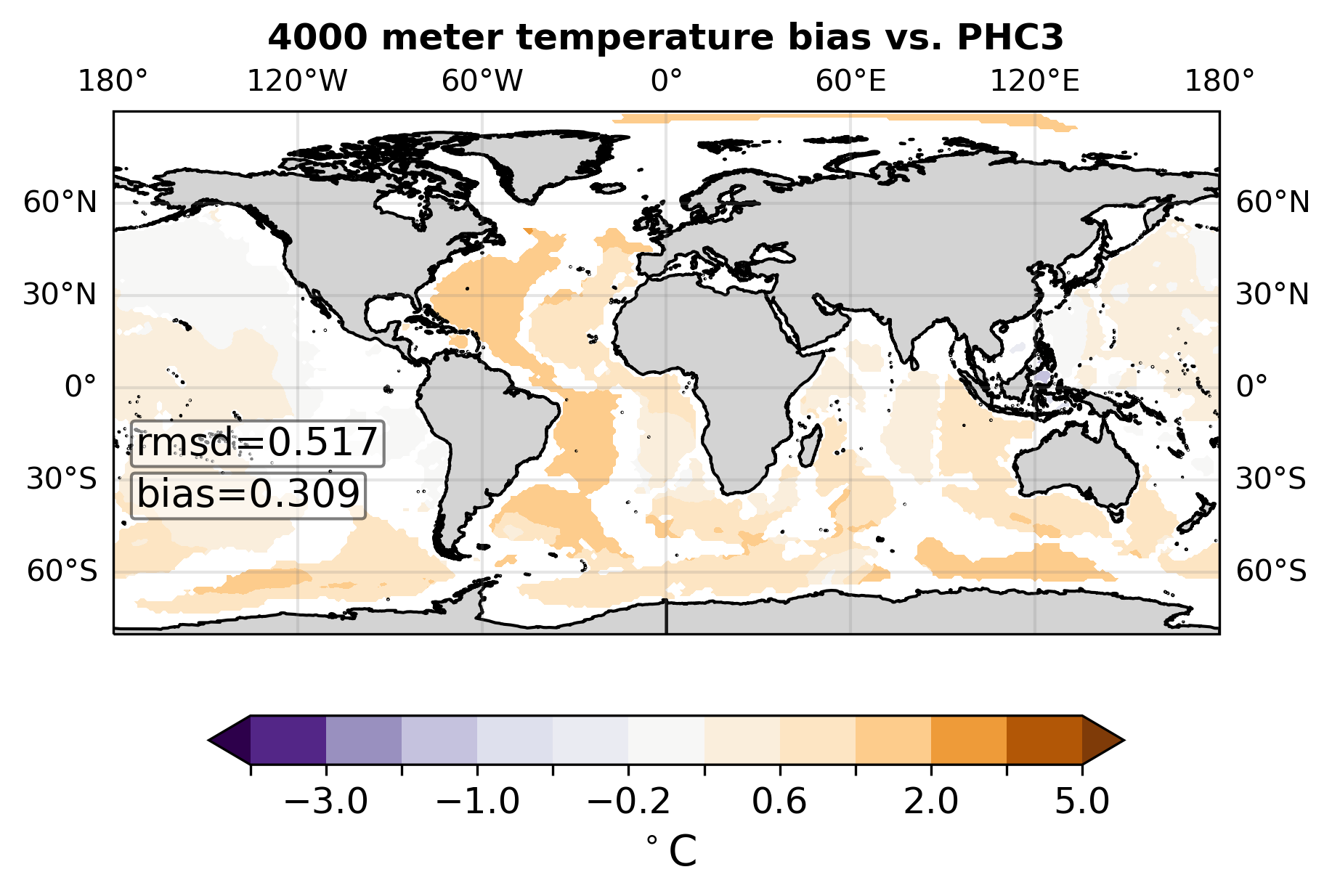

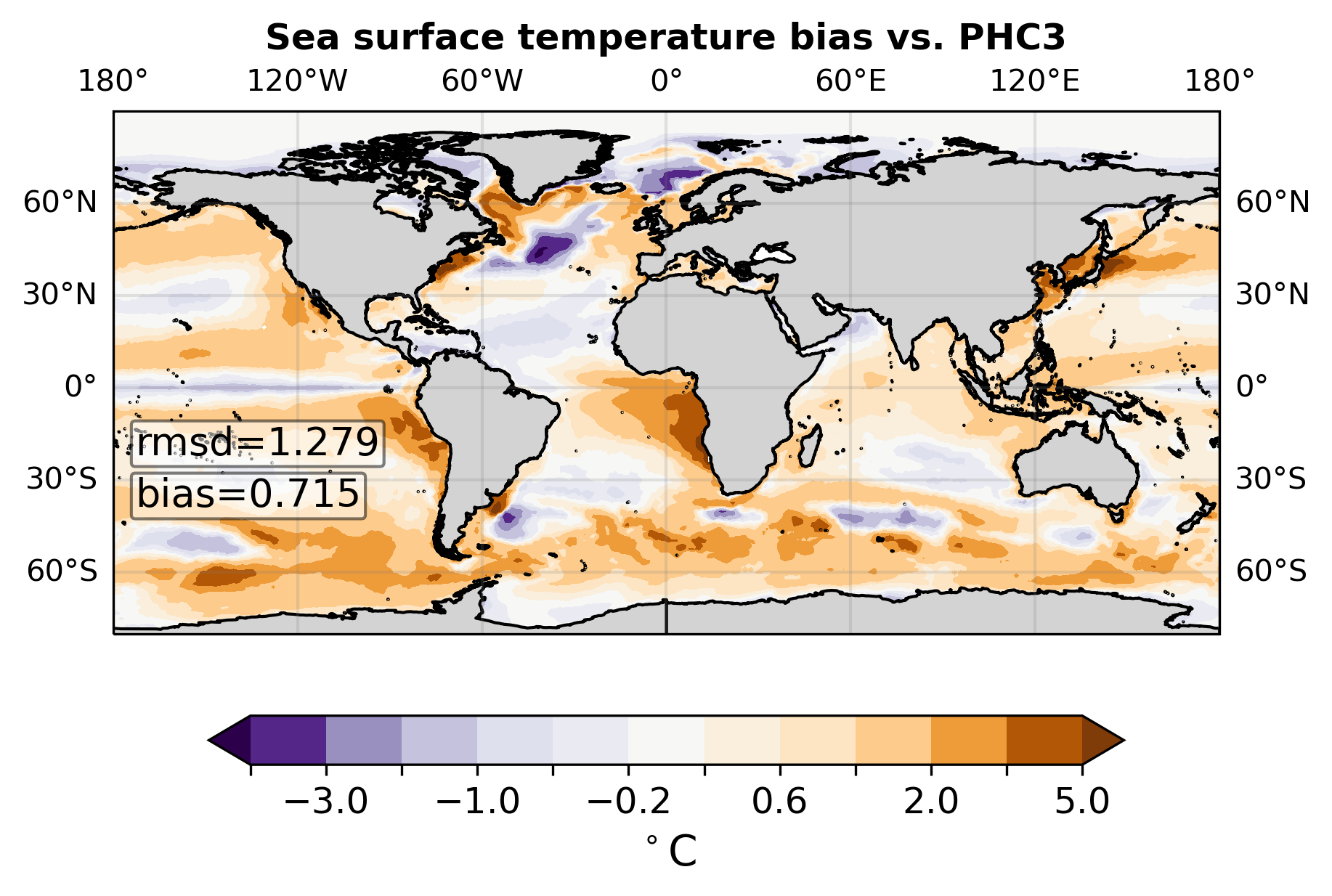

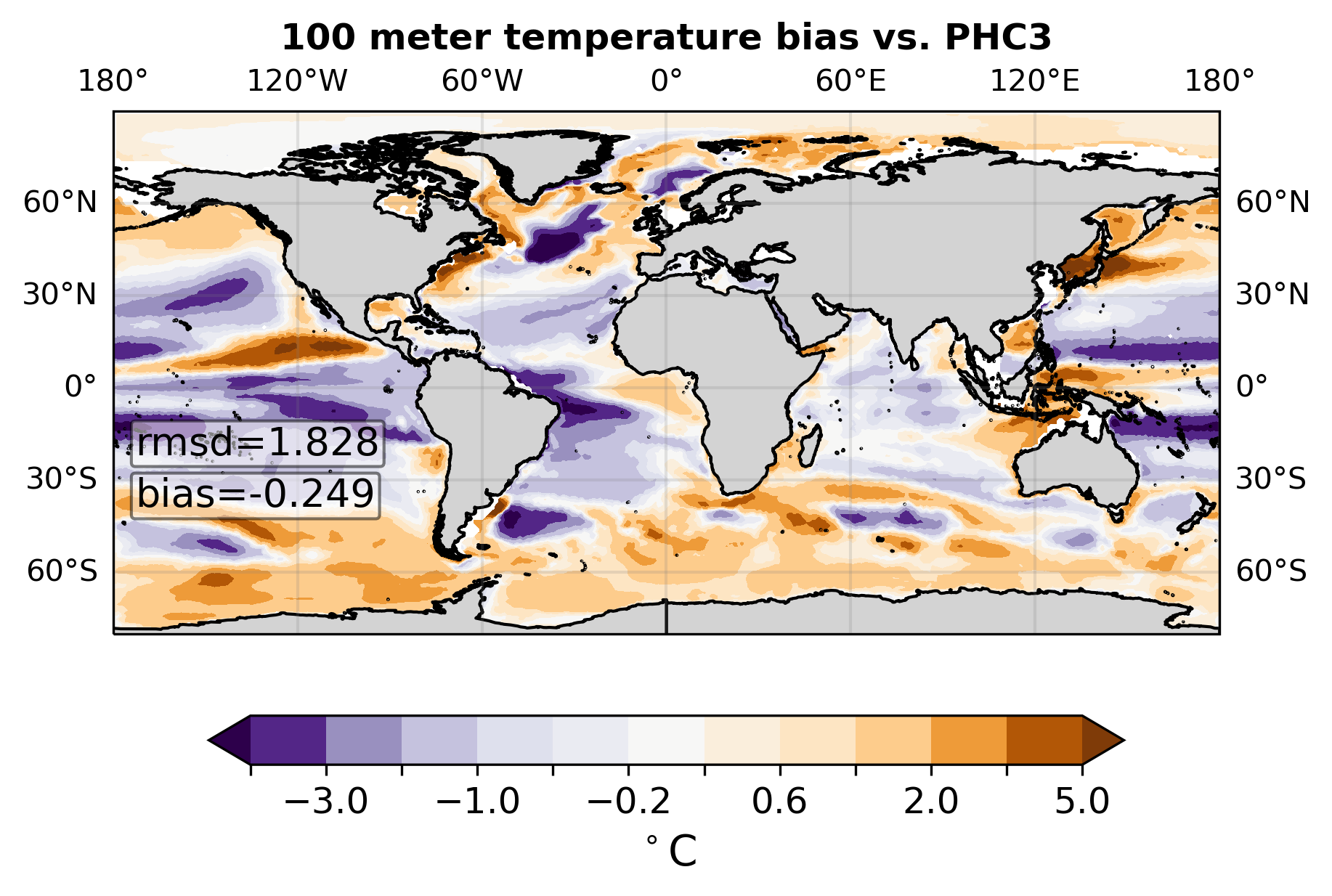

Ocean temperature bias

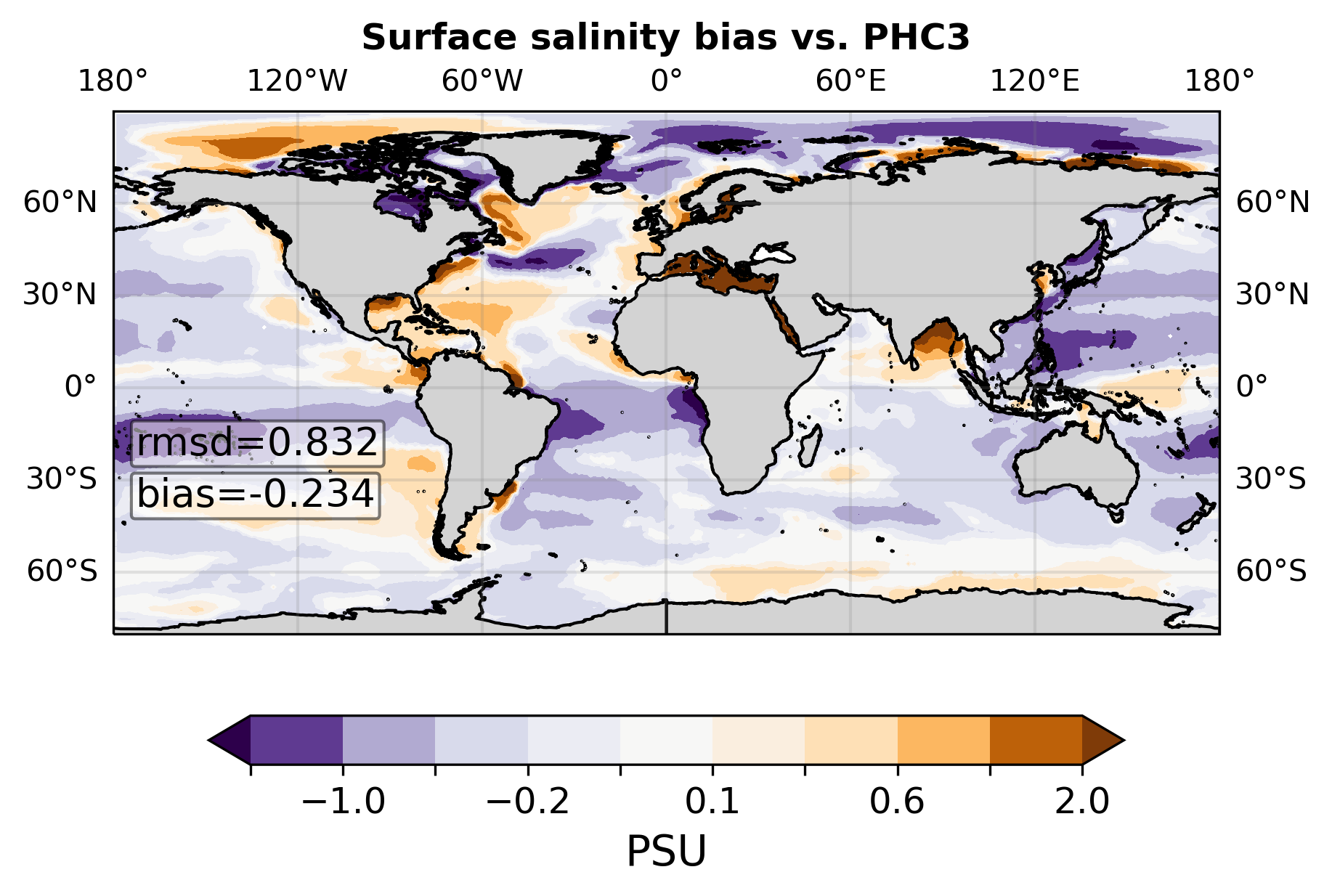

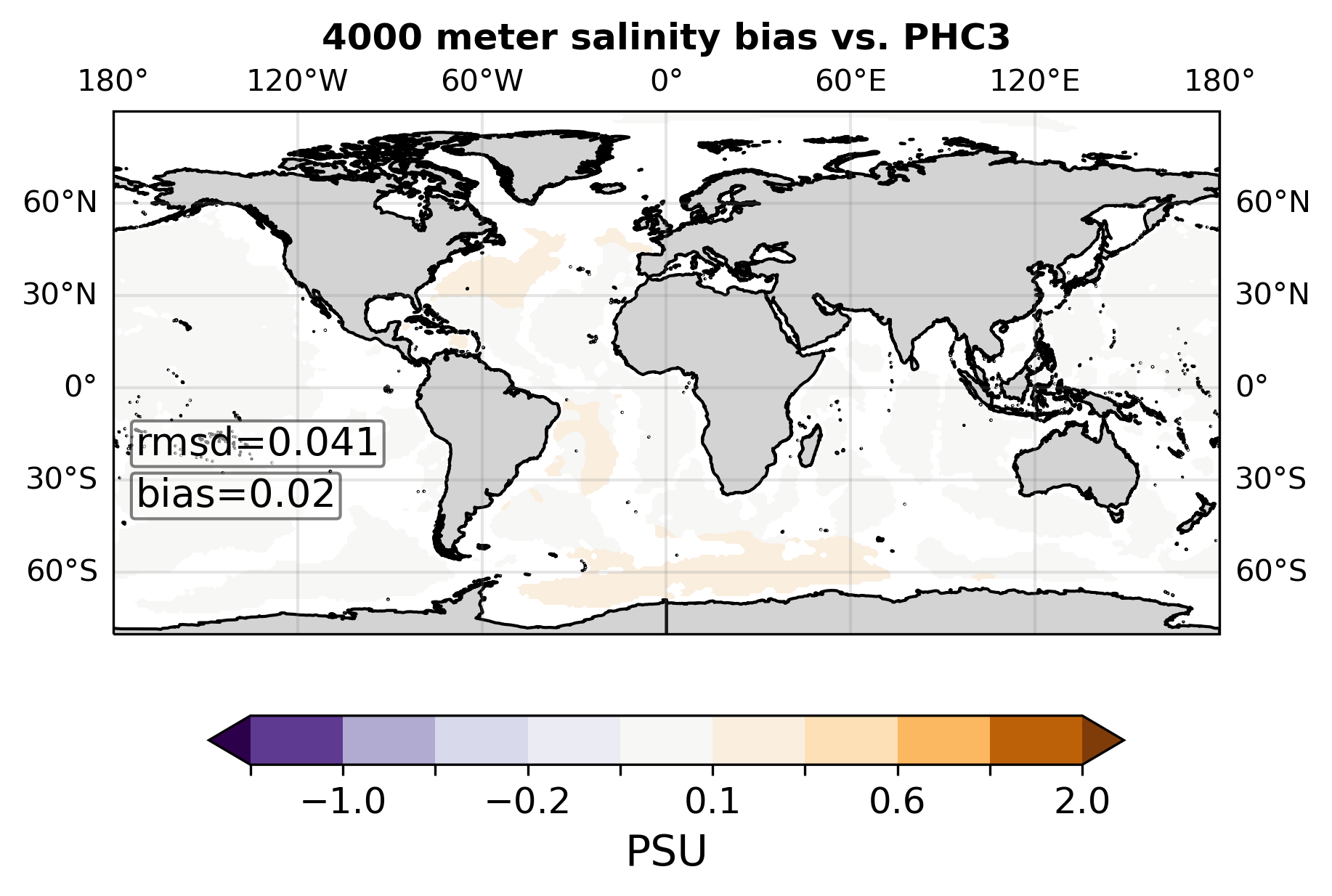

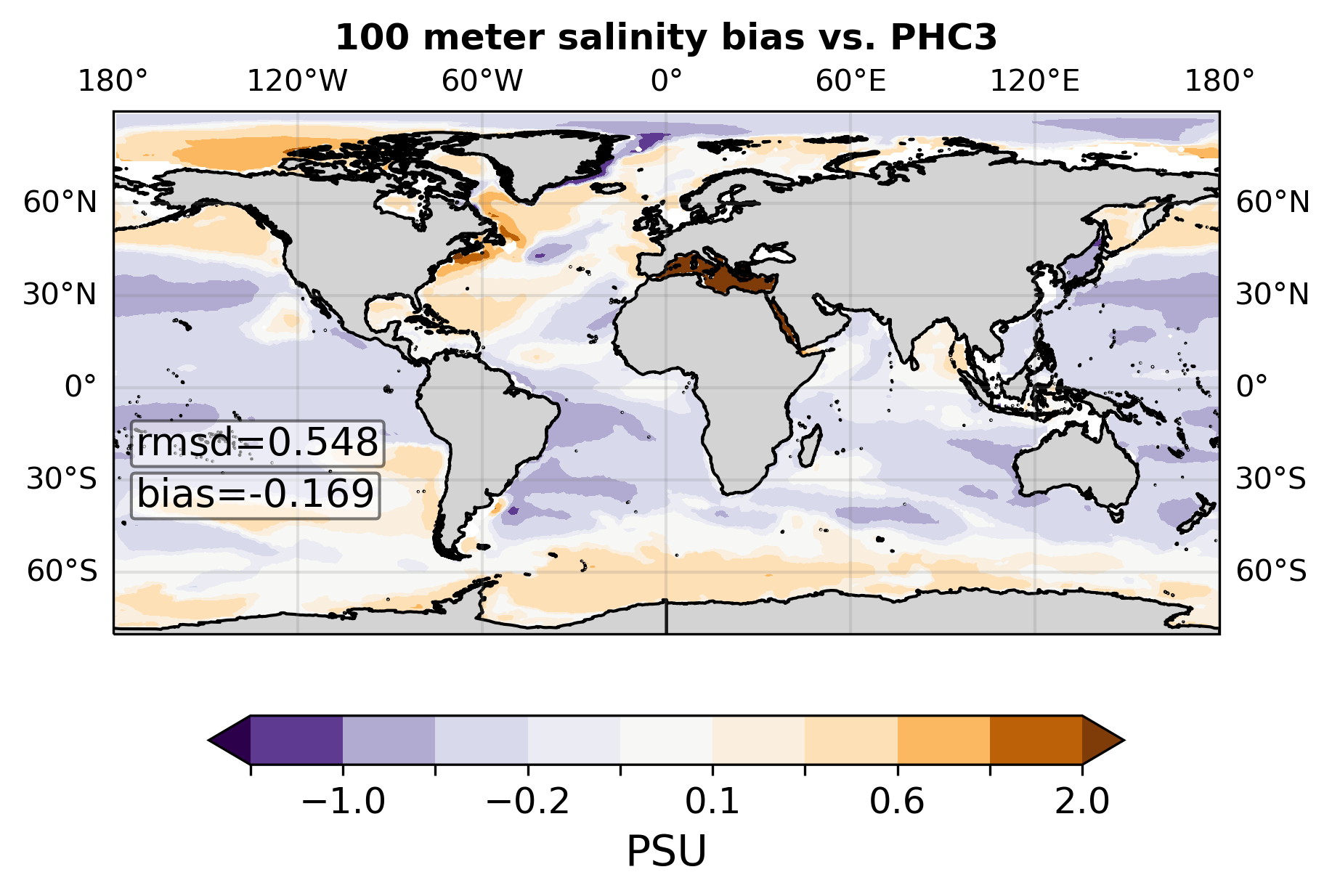

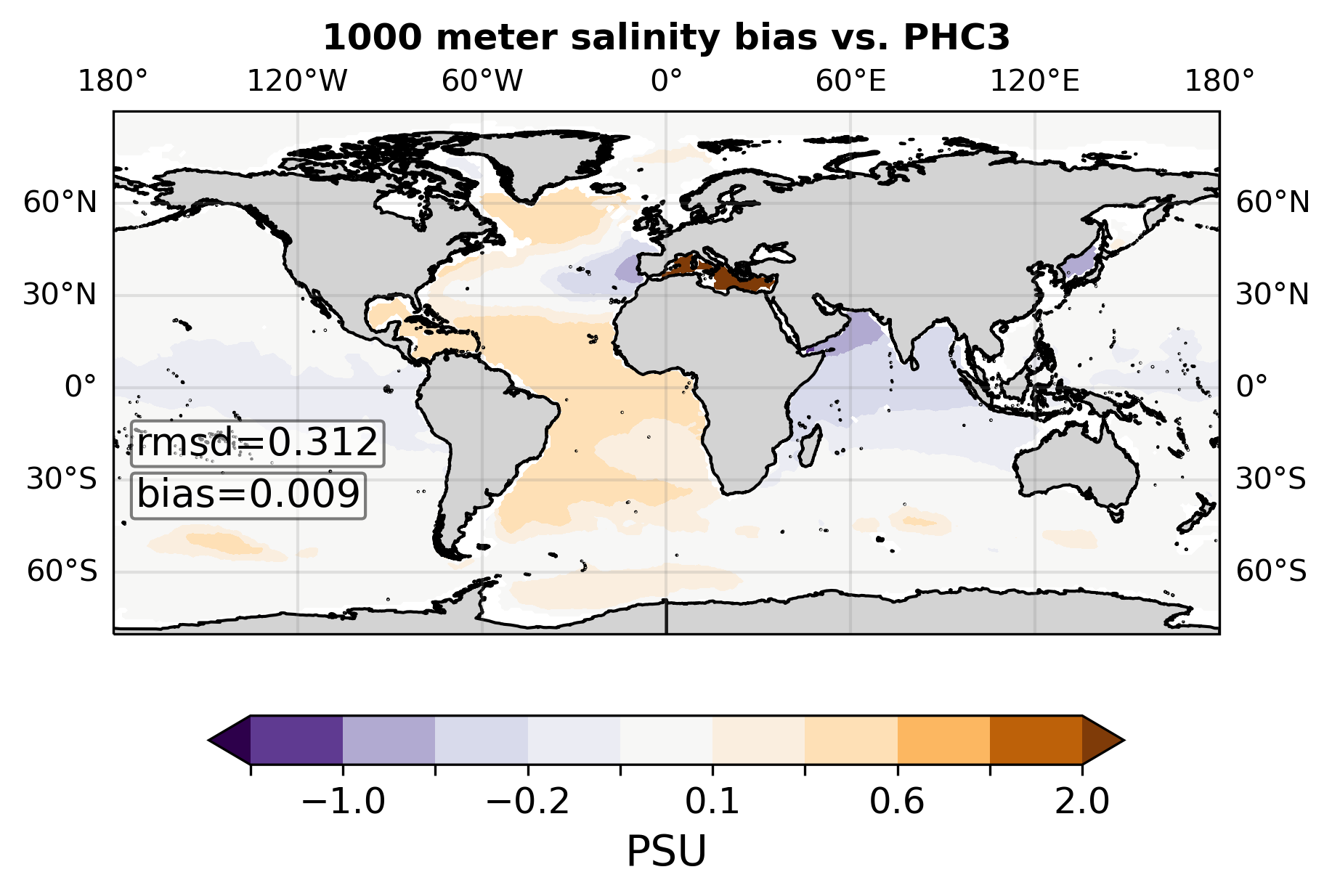

Salinity bias

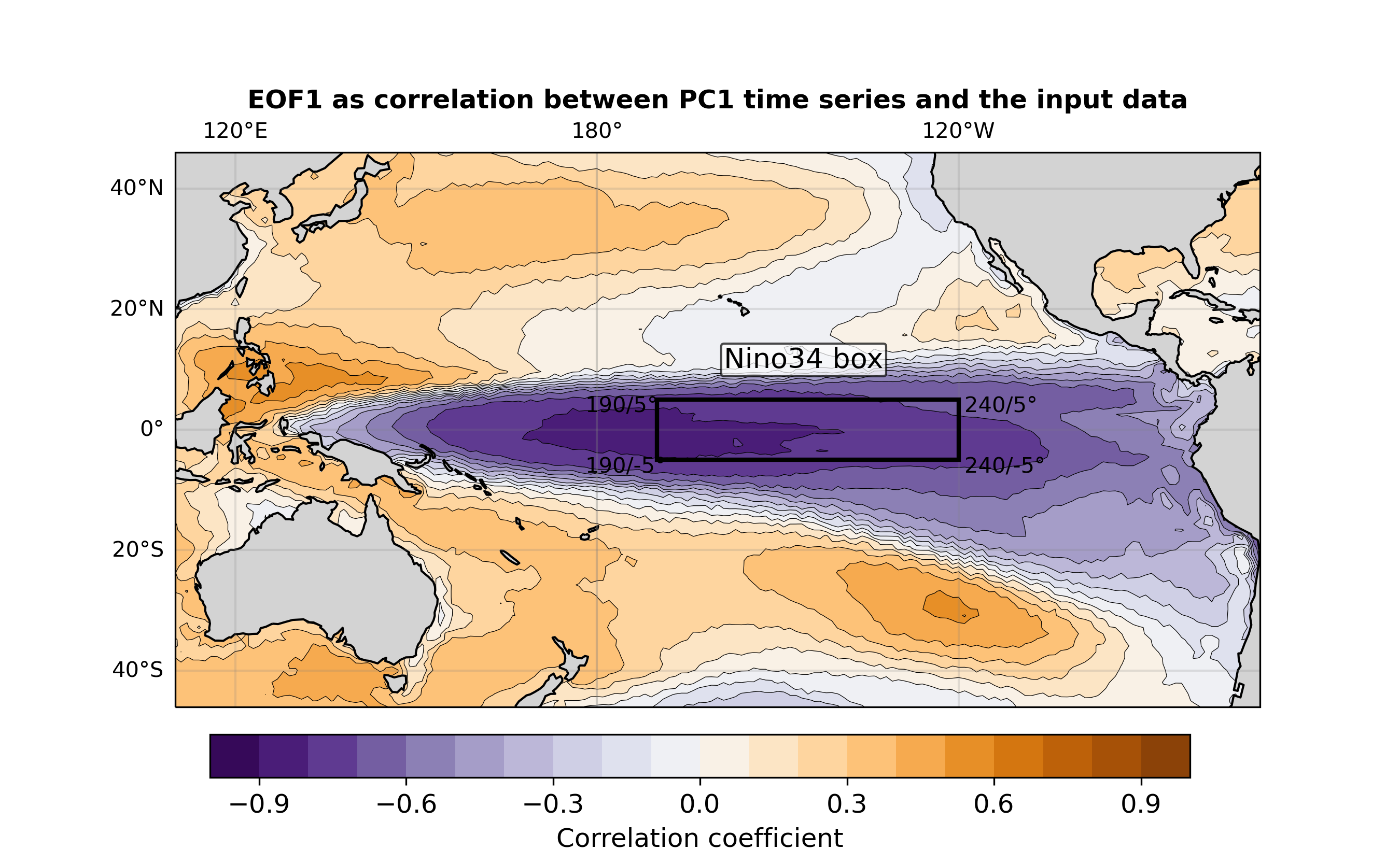

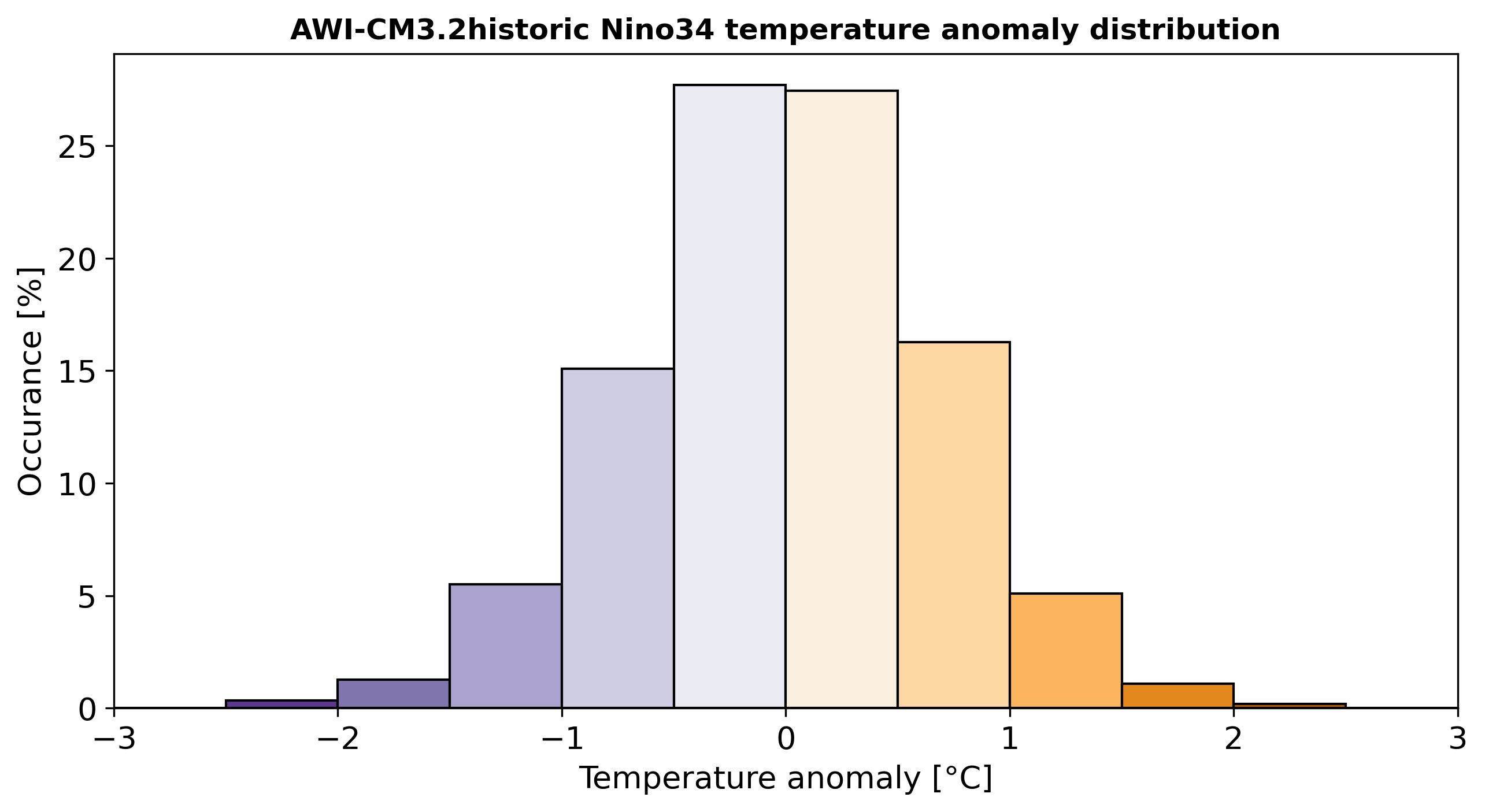

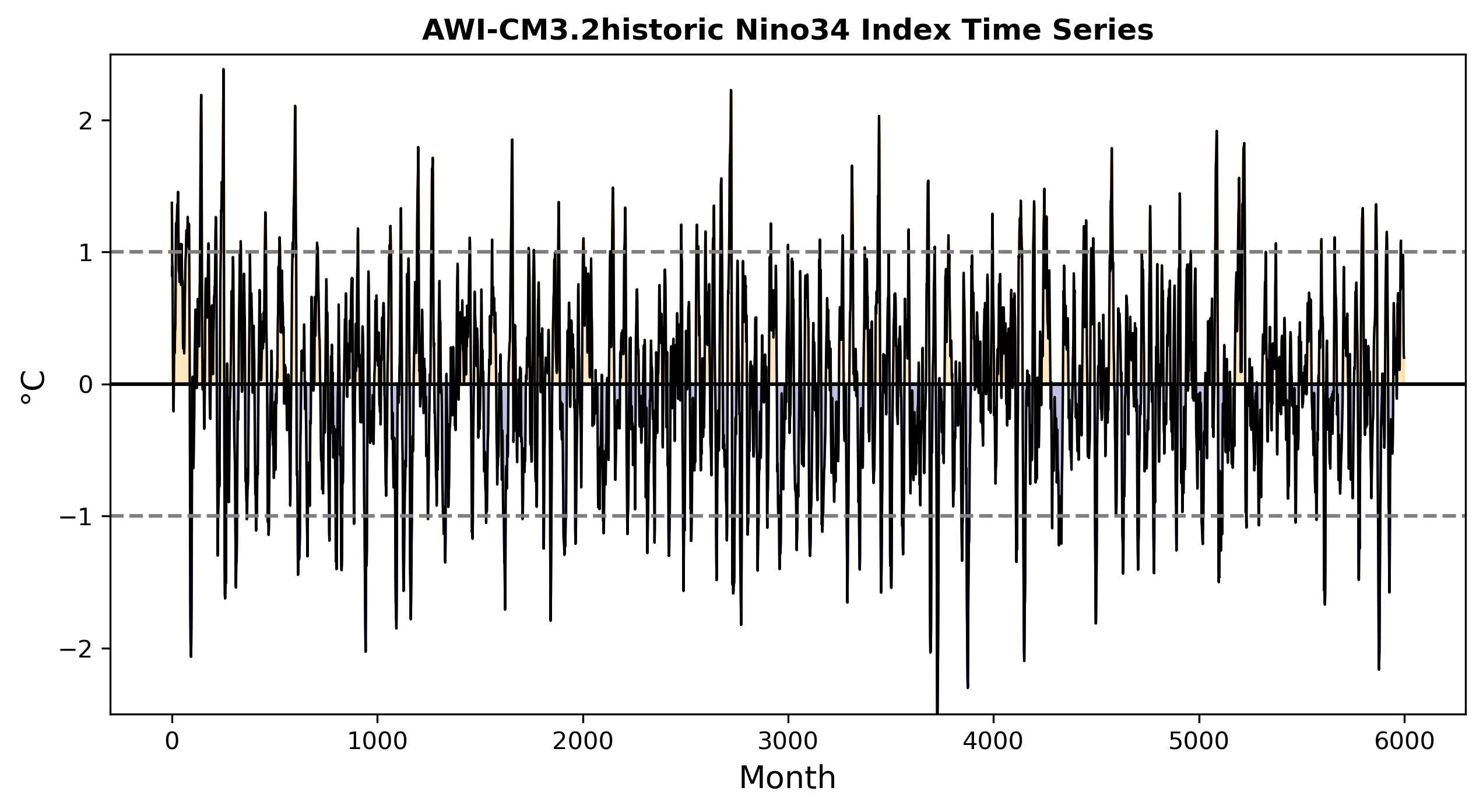

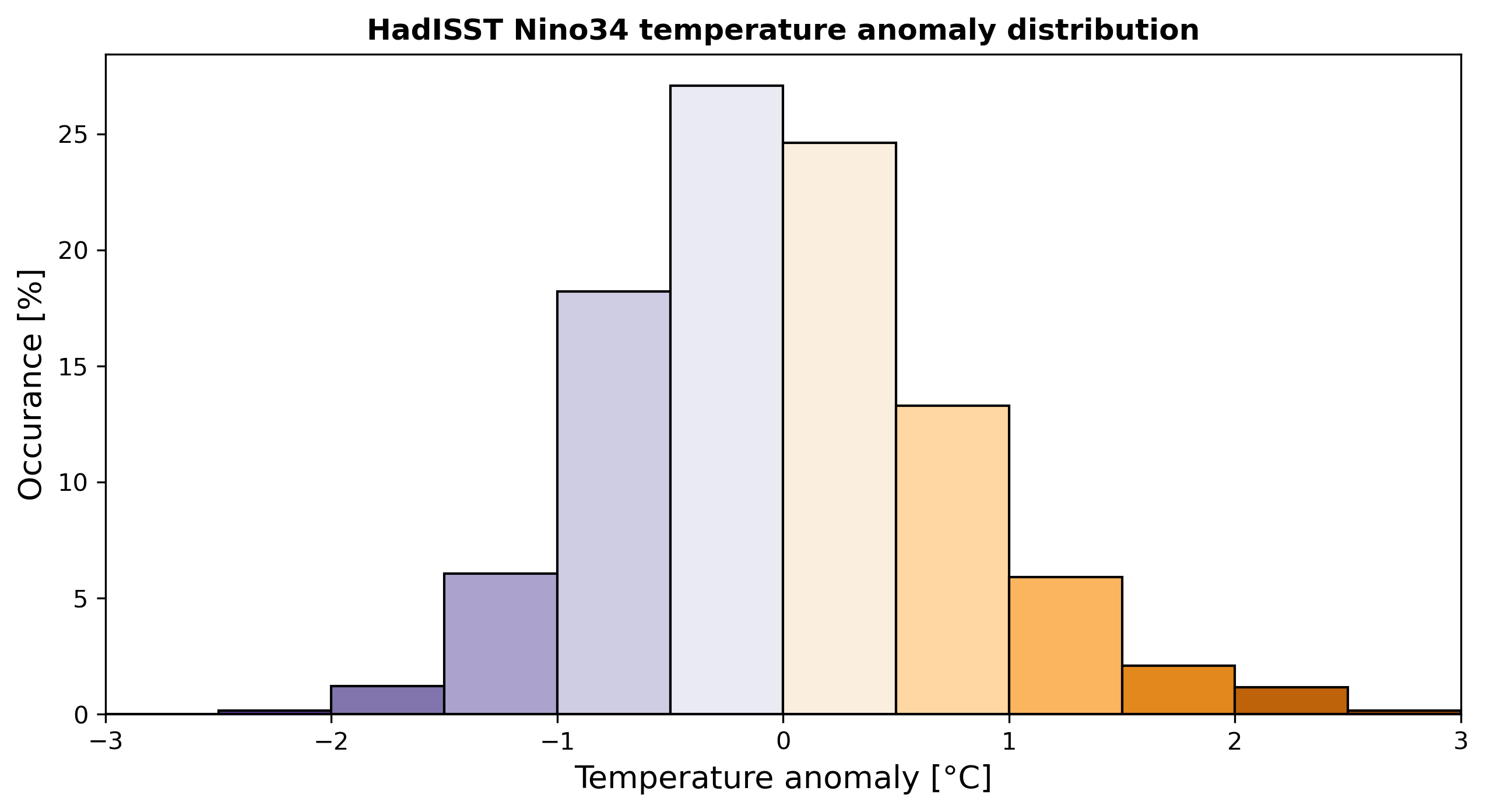

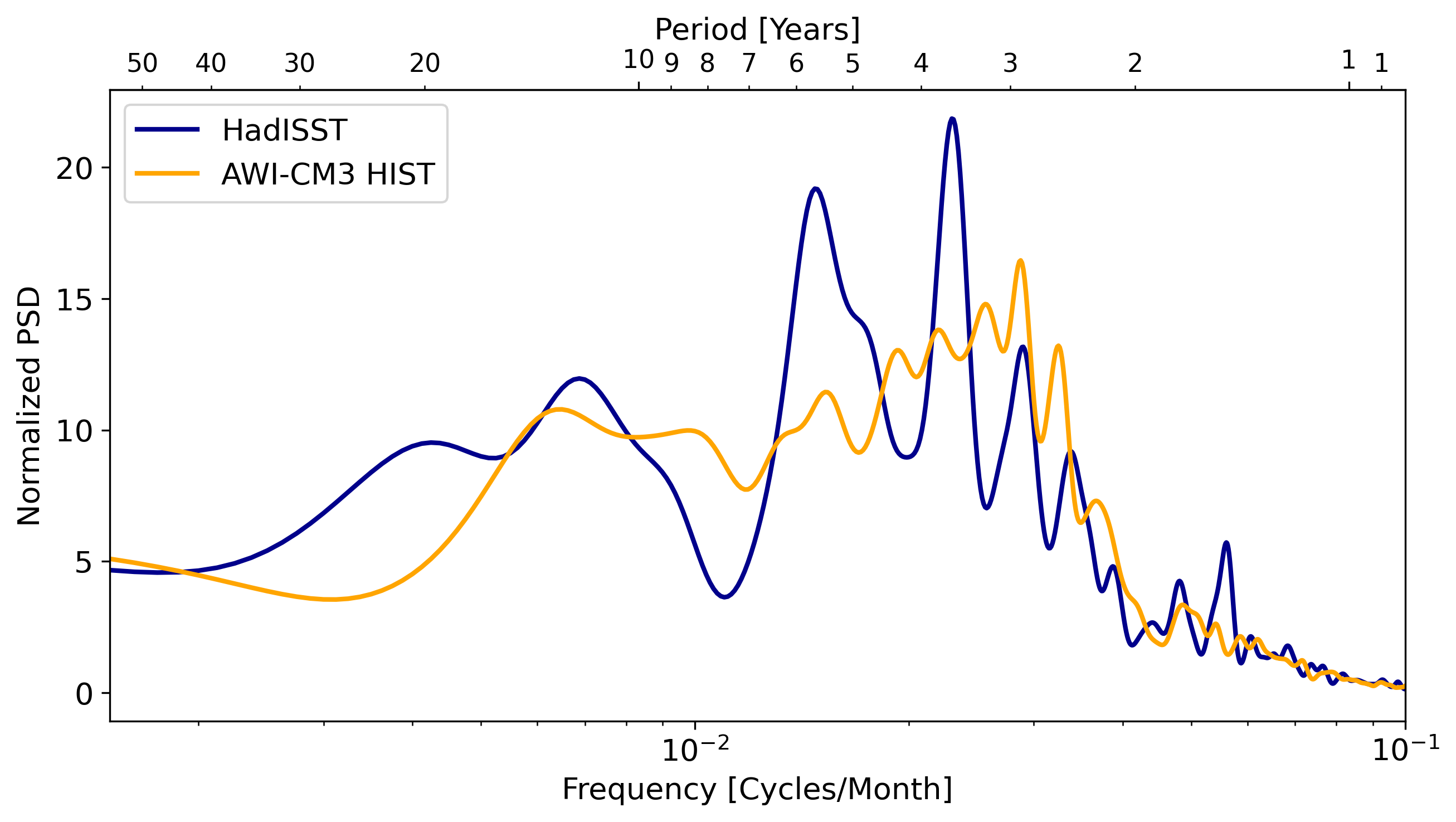

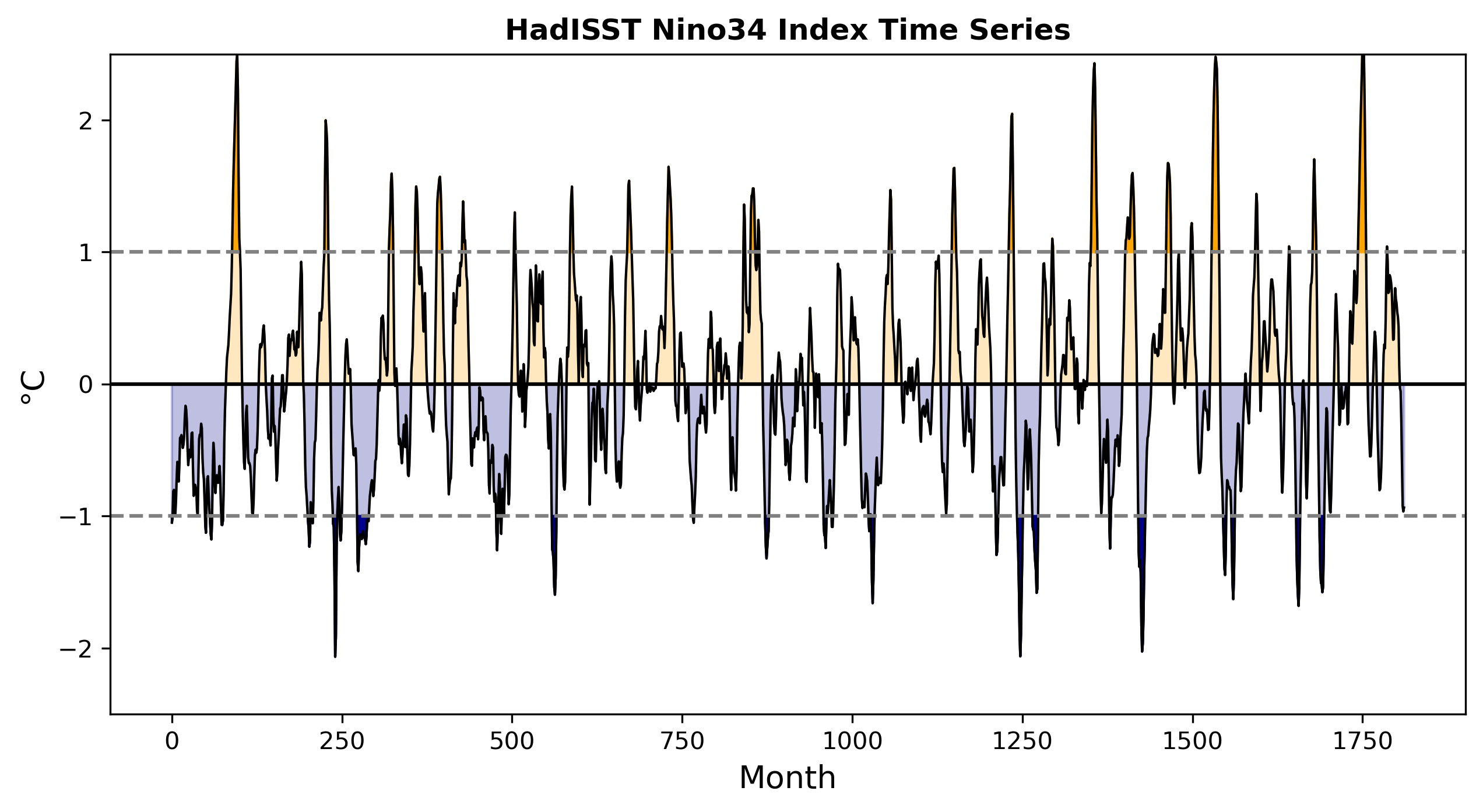

ENSO

AMOC

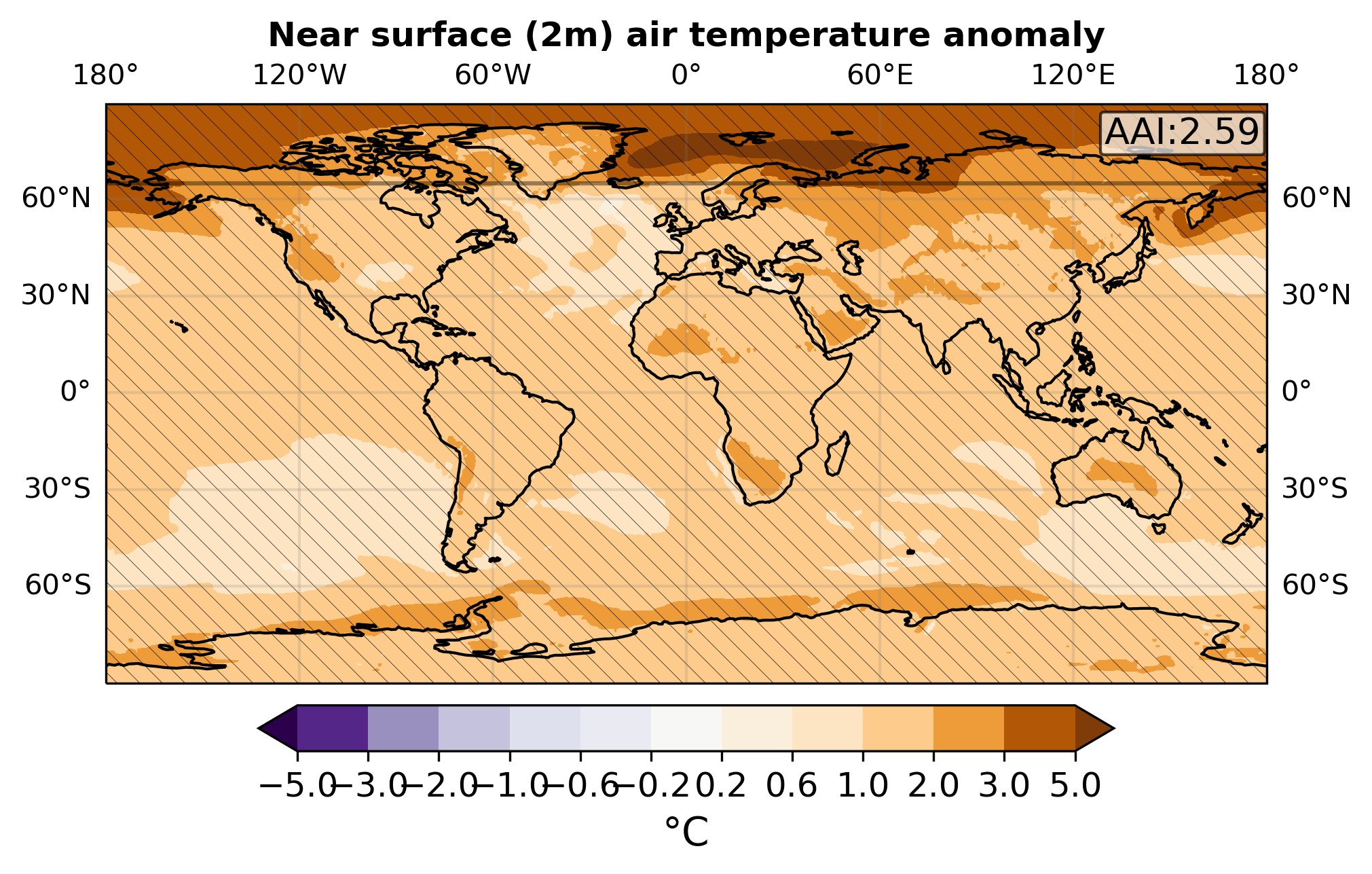

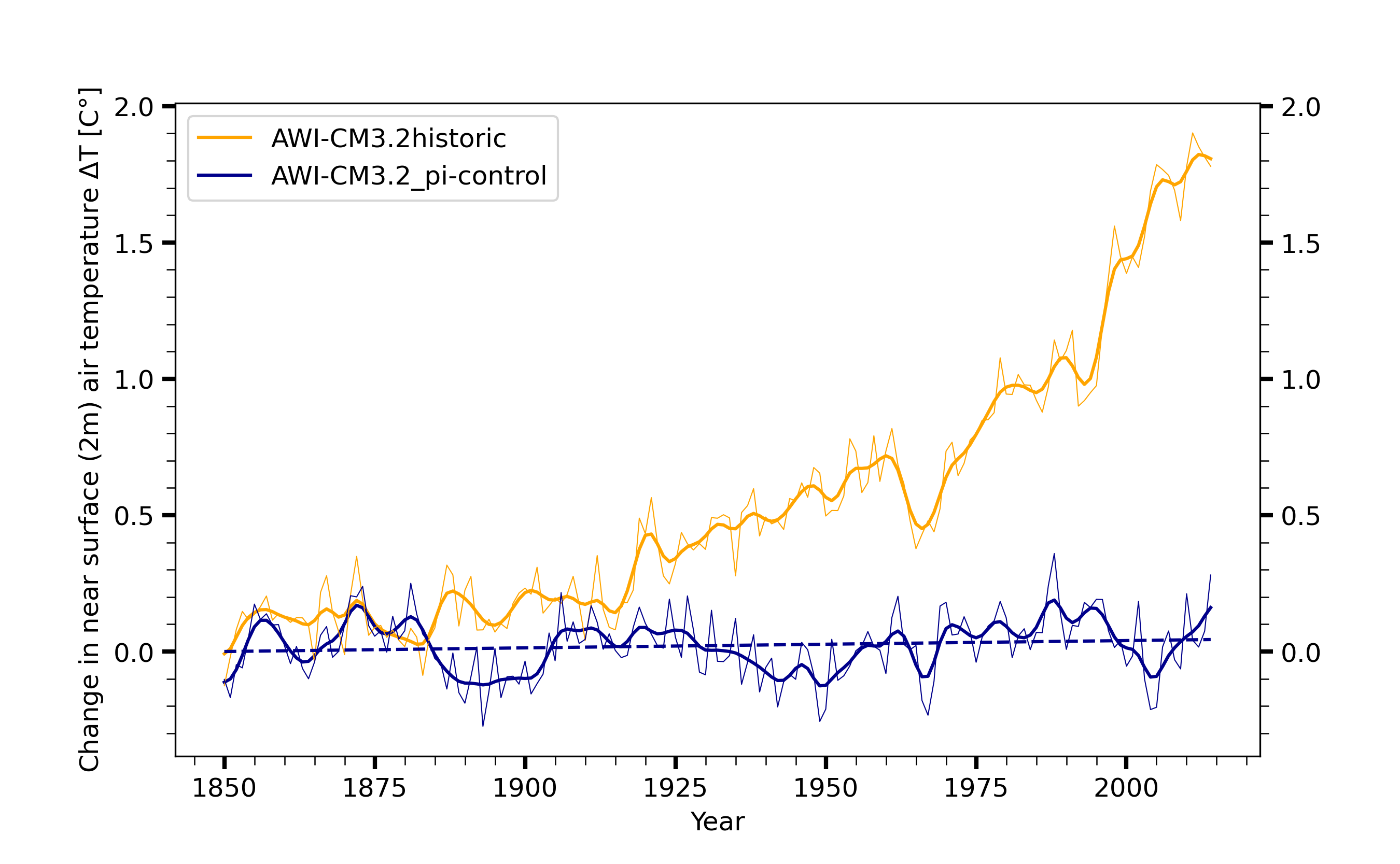

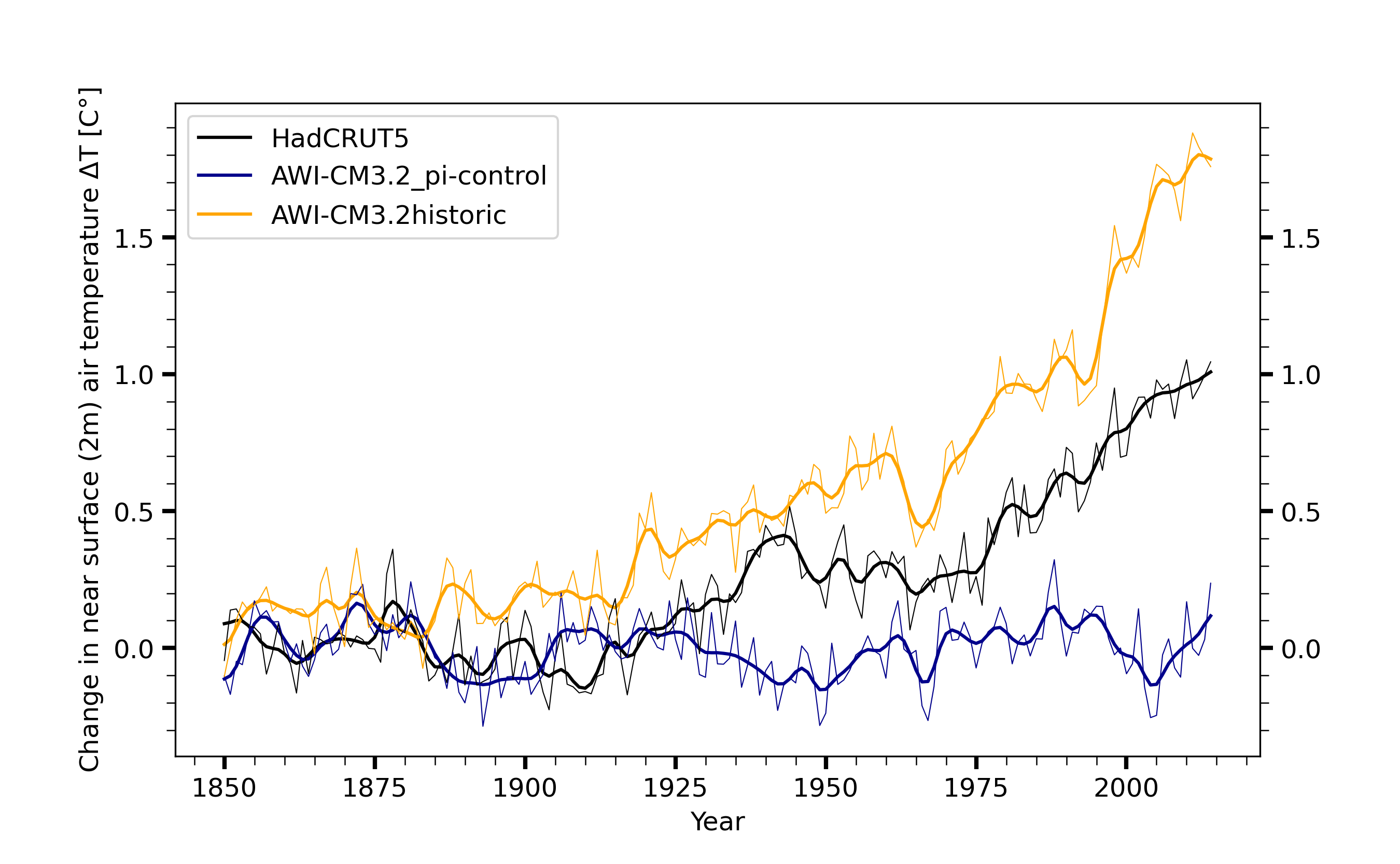

Global warming
